  • Cutler-Hammer XTCE007B10T IEC Control Contactor
Cutler-Hammer XTCE007B10T XTCE007B10T

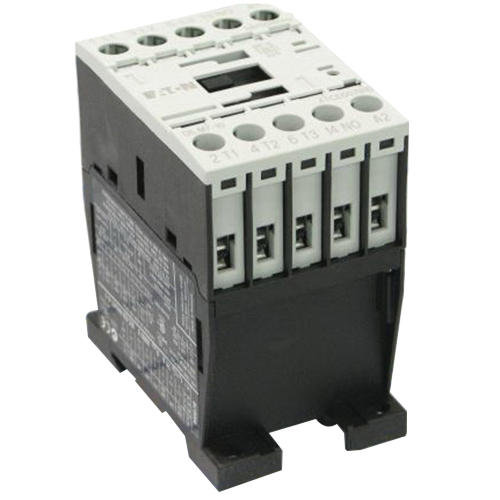

Cutler-Hammer XTCE007B10T IEC Control Contactor, 24 VAC Coil, 3 -Pole

Cutler-Hammer XTCE007B10T IEC Control Contactor, 24 VAC Coil, 3 -Pole XTCE007B10T

Cutler-Hammer IEC Control Contactor, 690 VAC, 7 A, 50/60 Hz, 3 hp, 3 hp, 2.5 hp, 10 hp, 24 VAC Coil Voltage, 3 ph Phase, 3 Poles, Screw Terminal Contact, DIN Rail, Panel Mounting, 45 mm Frame, Open Enclosure, -25 to 50 deg C, 3.07 in Height, 2.76 in Width, 1.81 in Depth

Amperage Rating      :      7 A
Coil Voltage      :      24 VAC
Contact Type      :      Screw Terminal
Depth      :      1.81 in
Enclosure Type      :      Open
Frame Size      :      45 mm
Frequency Rating      :      50/60 Hz
Height      :      3.07 in
Mounting Type      :      DIN Rail, Panel
Number of Poles      :      3
Phase      :      3 ph
Power Rating      :      3 hp, 3 hp, 2.5 hp, 10 hp
Temperature Rating      :      -25 to 50 deg C
Voltage Rating      :      690 VAC
Width      :      2.76 in
  • XT line of IEC control
  • Screw terminals (6 to 65 A), 5 mm (80 to 150 A), no lugs (185 to 2000 A)
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_XTCE007B10T_Catalog.pdf
