Cutler-Hammer XTCE032C01A XTCE032C01A

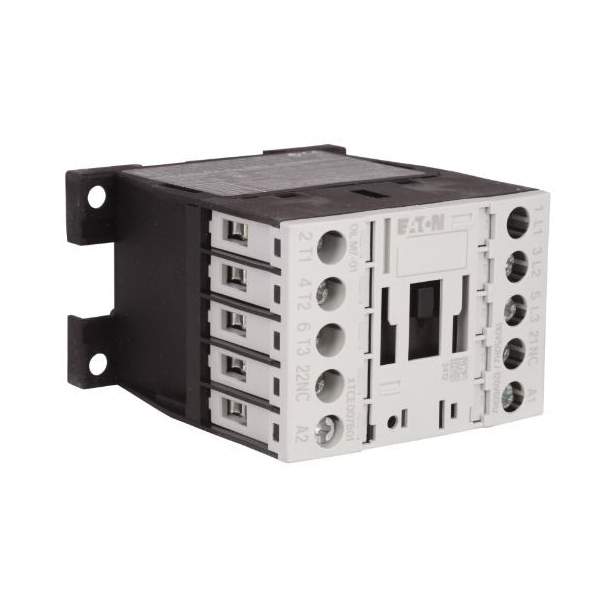

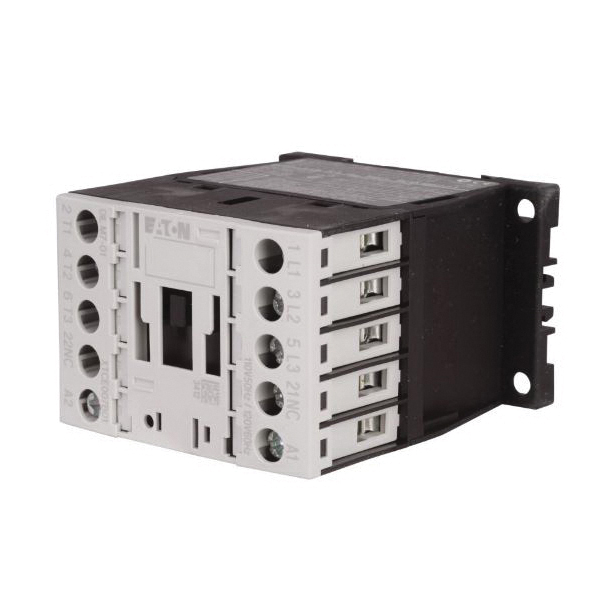

Cutler-Hammer XTCE032C01A Contactor

Cutler-Hammer XTCE032C01A Contactor, 110 to 120 VAC Coil, 1NC, 3 -Pole

Cutler-Hammer XTCE032C01A Contactor, 110 to 120 VAC Coil, 1NC, 3 -Pole XTCE032C01A

Cutler-Hammer Contactor, XT IEC Series, 32 A, 50/60 Hz, 3 hp, 5 hp, 10 hp, 20 hp, 25 hp, 110 to 120 VAC Coil Voltage, 3 Poles, 1NC Contact Configuration, 45 mm Frame, Screw Terminal, 2 in Height, 3-1/2 in Width, 4 in Depth

Amperage Rating      :      32 A
Coil Voltage      :      110 to 120 VAC
Contact Configuration      :      1NC
Depth      :      4 in
Frame Size      :      45 mm
Frequency Rating      :      50/60 Hz
Height      :      2 in
Number of Poles      :      3
Power Rating      :      3 hp, 5 hp, 10 hp, 20 hp, 25 hp
Series      :      XT IEC Series
Terminal Type      :      Screw
Width      :      3-1/2 in
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_C25DNC340A_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_XTCE032C01A_Specification_Sheet.pdf
