Cutler-Hammer XTCE040DS1A XTCE040DS1A

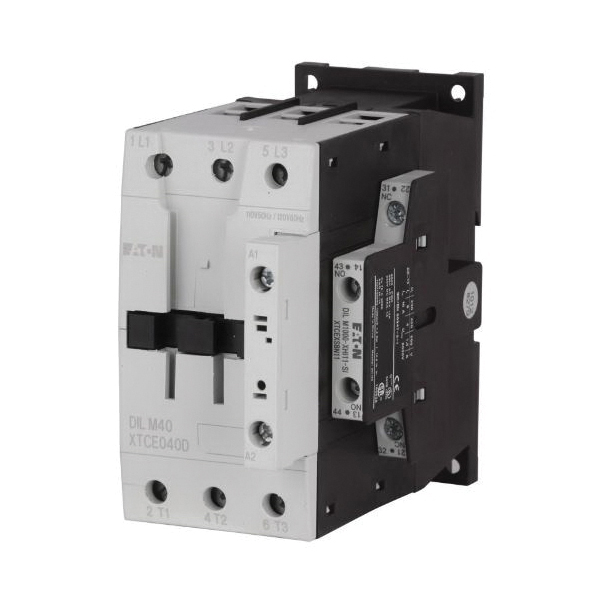

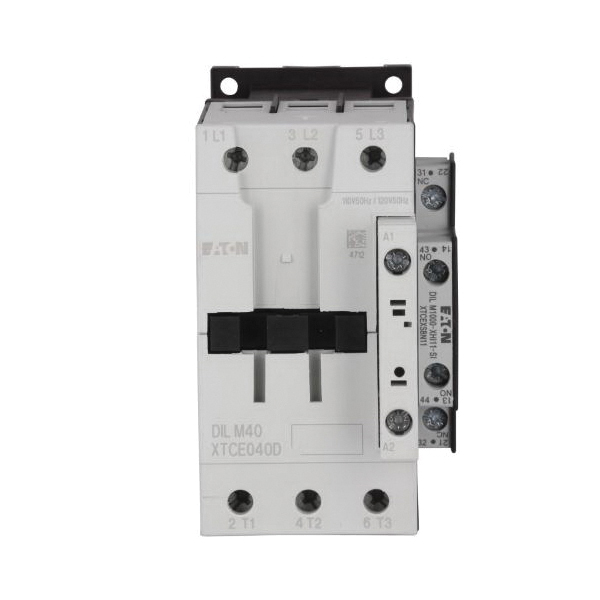

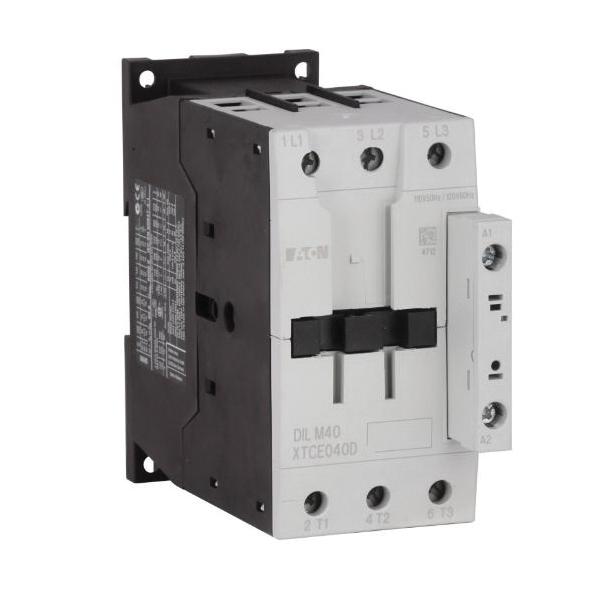

Cutler-Hammer XTCE040DS1A Contactor

Cutler-Hammer XTCE040DS1A Contactor, 110 to 120 VAC Coil, 1NO-1NC, 3 -Pole

Cutler-Hammer XTCE040DS1A Contactor, 110 to 120 VAC Coil, 1NO-1NC, 3 -Pole XTCE040DS1A

Cutler-Hammer Contactor, XT IEC Series, 40 A, 50/60 Hz, 3 hp, 5 hp, 7-1/2 hp, 10 hp, 15 hp, 30 hp, 40 hp, 110 to 120 VAC Coil Voltage, 3 Poles, 1NO-1NC Contact Configuration, 55 mm Frame, Screw Terminal, 1 in Height, 1 in Width, 1 in Depth

Amperage Rating      :      40 A
Coil Voltage      :      110 to 120 VAC
Contact Configuration      :      1NO-1NC
Depth      :      1 in
Frame Size      :      55 mm
Frequency Rating      :      50/60 Hz
Height      :      1 in
Number of Poles      :      3
Power Rating      :      3 hp, 5 hp, 7-1/2 hp, 10 hp, 15 hp, 30 hp, 40 hp
Series      :      XT IEC Series
Terminal Type      :      Screw
Width      :      1 in
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_C25DNC340A_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_XTCE040DS1A_Specification_Sheet.pdf
