Cutler-Hammer XTFC032BCTD XTFC032BCTD

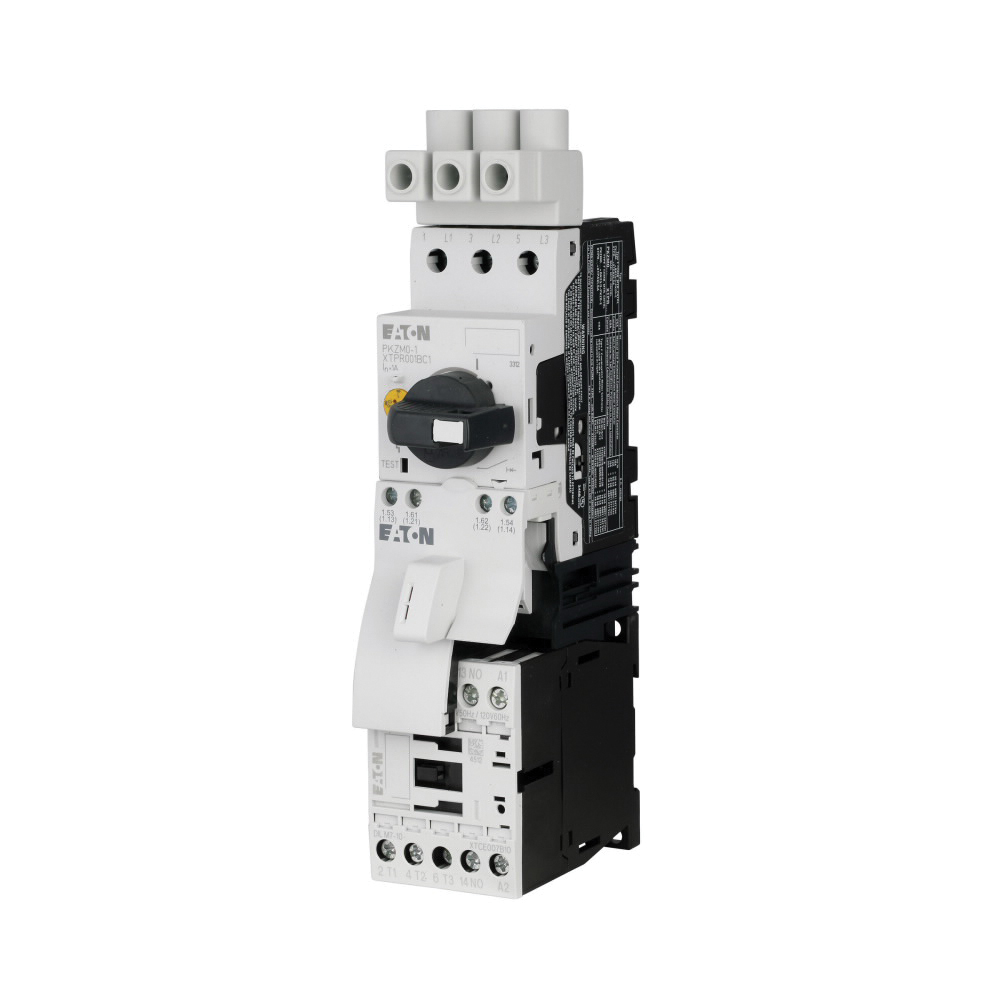

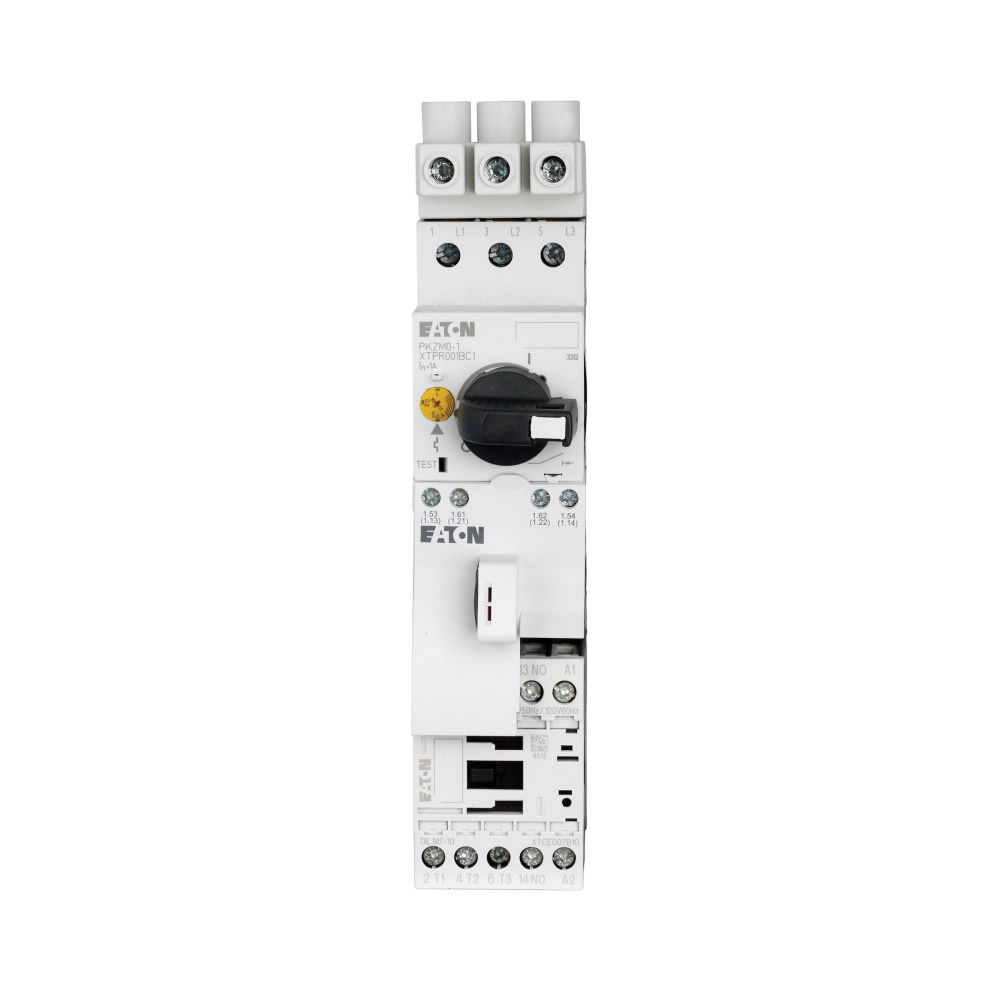

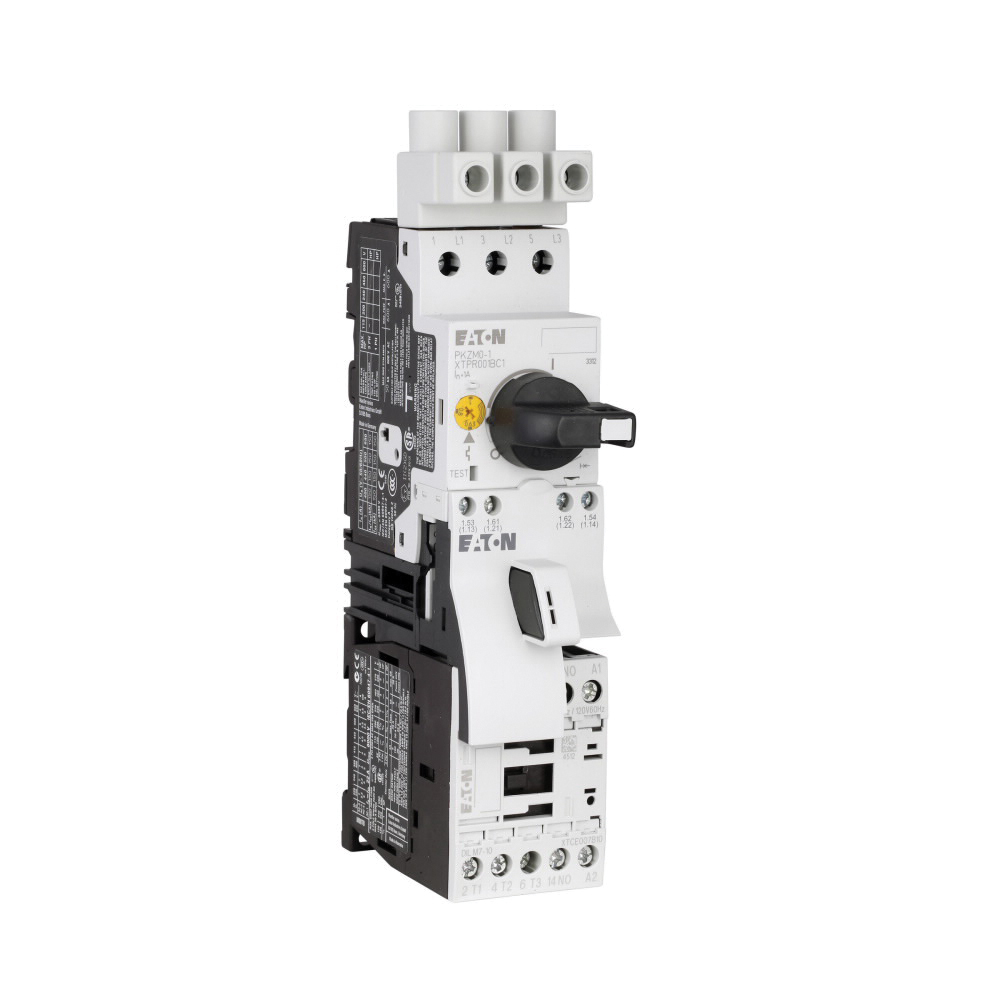

Cutler-Hammer XTFC032BCTD IEC Combination Motor Controller

Cutler-Hammer XT Series XTFC032BCTD IEC Combination Motor Controller, 660/690 V, 32 A, 30 hp

Cutler-Hammer XT Series XTFC032BCTD IEC Combination Motor Controller, 660/690 V, 32 A, 30 hp XTFC032BCTD

Cutler-Hammer IEC Combination Motor Controller, Series: XT Series, 660/690 V, 32 A, 30 hp, 3 ph Phase, 24 VDC Coil Voltage, 25 to 32 A Full Load Current Rating, 0.1 to 32 A Overload Relay Current Range, 45 mm Frame Size, B Frame Type, 1 NO, 1 NC Contact Configuration Additional Information

Additional Information      :      45 mm Frame Size, B Frame Type, 1 NO, 1 NC Contact Configuration
Amperage Rating      :      32 A
Coil Voltage      :      24 VDC
Full Load Current Rating      :      25 to 32 A
HP Rating      :      30 hp
Overload Relay Current Range      :      0.1 to 32 A
Phase      :      3 ph
Series      :      XT Series
Voltage Rating      :      660/690 V
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_XTAE007B01TD1P6_Catalog.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_XTFC032BCTD_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_XTFC032BCTD_Specification_Sheet.pdf
