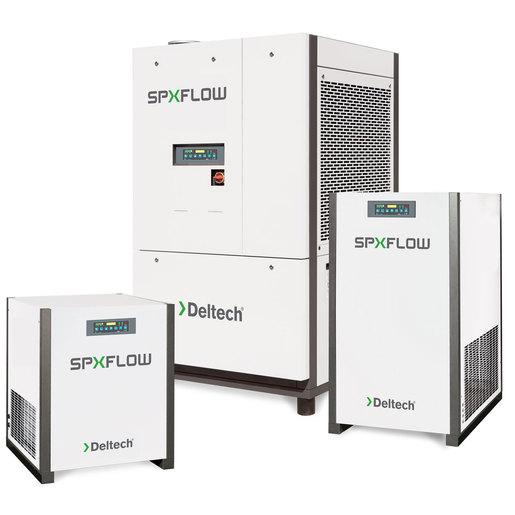

Deltech HYDROGARD HGD-2500 Non-cycling Refrigerated Air Dryer
Deltech® HYDROGARD® HGD HGD-2500 Non-Cycling Refrigerated Air Dryer, 460 VAC, 12.91 kW, 6 in Inlet Connection
Deltech® HYDROGARD® HGD HGD-2500 Non-Cycling Refrigerated Air Dryer, 460 VAC, 12.91 kW, 6 in Inlet Connection HGD-2500- Brand Name: Deltech®
- Part Number: HGD-2500
- Check Stock
Add To Favorites ListDeltech® Non-Cycling Refrigerated Air Dryer, 460 VAC, 60 Hz Frequency, 3 Phase, 12.91 kW Power, 6 in Inlet Connection, 6 in Outlet Connection, Inlet Air Temperature: 100 deg F, Air Flow Rate: 2500 scfm, 232 psig Air Pressure, 100 deg F Maximum Temperature, Filter Rating: >3 um, Refrigerant Type: R-404A, Electric Demand Drain, 85 in Overall Height, 55 in Overall Width, 60 in Overall Depth
| Air Flow Rate | : | 2500 scfm |
| Air Pressure | : | 232 psig |
| Drain Type | : | Electric Demand |
| Filter Rating | : | >3 um |
| Frequency Rating | : | 60 Hz |
| Inlet Air Temperature | : | 100 deg F |
| Inlet Connection Size | : | 6 in |
| Maximum Temperature | : | 100 deg F |
| Outlet Connection Size | : | 6 in |
| Overall Depth | : | 60 in |
| Overall Height | : | 85 in |
| Overall Width | : | 55 in |
| Phase | : | 3 |
| Power Rating | : | 12.91 kW |
| Refrigerant Type | : | R-404A |
| Voltage Rating | : | 460 VAC |
