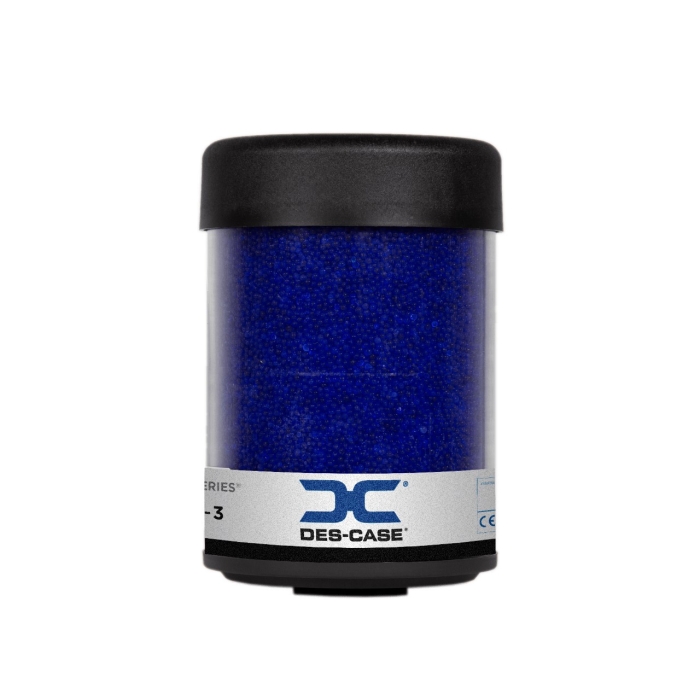

Des-Case DC-EX-3 Extended Desiccant Breather
Des-Case® Extended® Series DC-EX-3 Disposable Desiccant Breather Filter, 3.2 lbs Blue Silica Gel, 1 In Female Connection, 25 CFM Flow Rate, 20.5 Fl Oz Adsorption Capacity, 3 Micron
Des-Case® Extended® Series DC-EX-3 Disposable Desiccant Breather Filter, 3.2 lbs Blue Silica Gel, 1 In Female Connection, 25 CFM Flow Rate, 20.5 Fl Oz Adsorption Capacity, 3 Micron DC-EX-3- Brand Name: Des-Case
- Part Number: DC-EX-3
- Check Stock
-
$196.00
Add To Favorites ListDesigned For High-Flow Systems Needing Extended Service Life
Des-Case Extended Series® desiccant breathers combine the trusted materials and design of our Standard breathers with the check-valves of our VentGuard™ and HydroGuard® breathers, plus a new oil mist reducing feature, higher air flows and more than double the desiccant! These high airflow, long-lasting desiccant breathers are ideal for tank farms and large or remote applications.
The First Line of Defense Against Contamination
The desiccant breather replaces the standard dust cap or OEM breather cap on equipment, offering better filtration to protect against even the smallest particulates that destroy the effectiveness of your machinery, and cause downtime and costly repairs. As air is drawn into equipment through the breather, the layered desiccant filter elements remove particulate while the desiccant beads strip harmful moisture. While in service or during shut-down, the desiccant beads attract moisture from inside the equipment reservoir, actively drying the equipment.
1. Six Check-Valves
High-quality umbrella check-valves that won’t clog or stick are located underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions prolonging breather life, and protecting system integrity.
2. Integrated Nylon Standpipe
The integrated standpipe provides excellent vibration resistance and dissipates impact throughout the unit, eliminating weak points. It also allows even airflow distribution throughout the unit, eliminating inaccurate readings of desiccant saturation.
3.Honeycomb Technology Oil Mist Reducer
The oil mist reducer is situated inside the standpipe, made from polypropylene for maximum chemical compatibility. Mimicking nature’s intricate honeycomb design, this feature allows oil mist to coalesce and drain back into the reservoir, rather than compromising the desiccant.
4. Resilient Polycarbonate Body
Shock-absorbing, clear casing provides reliable service, easy visual maintenance, and UV resistance.
5. Filter Element
Polyester filter element removes airborne contamination to 3-micron absolute. Unique loops allow particles to release during system exhalation, helping to increase breather life.
6. Foam Pad
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.
7. Water Vapor Adsorbent
Silica gel adsorbs water from incoming air and can hold up to 40% of its weight. Condition is indicated by change of color from blue to light pink.
8. Secondary Filter Element
Second polyester filter element protects against migration of desiccant dust, providing maximum efficiency.
9. Threaded Mounting
Internal threads provide durability and stability and can be used with one of several adapters.
| Air Flow Rate | : | 25 CFM |
| Connection Size | : | 1 Inch |
| Connection Type | : | Multi-Fit (NPT, BSPP, BSPT) |
| Desiccant Capacity | : | 3.2 lbs |
| Desiccant Type | : | Blue to Pink Silica Gel |
| Filter Efficiency | : | 3 Micron |
| Filter Media | : | Polyester, Polyurethane |
| Housing Material | : | Nylon 6/6 30% Glass Filled, Polycarbonate, Polypropylene, Silicone |
| Overall Diameter | : | 5.66 Inch |
| Overall Height | : | 8.30 Inch |
| Reservoir Fluid Flow Rate | : | 187 GPM |
| Seal Material | : | EPDM |
| Series | : | Extended® |
| Style | : | Extended |
| Suitable For Use With | : | Storage Tanks, Large Gearboxes/Hydraulics, Wind Turbines, Oil Misting, Remote Applications |
| Temperature Range | : | -20°F to 200°F |
| Volume | : | 300 Gallon (Hydraulic Reservoir), 800 Gallon (Gearbox/Storage Tank) |
| Water Adsorption Capacity | : | 20.5 Fl Oz |
- Combines check valves with oil mist control and double desiccant capacity
- Designed for high-flow systems needing extended service life
- Compatible with all mineral oils, most synthetic oils and diesel fuels
- All models are REACH compliant
