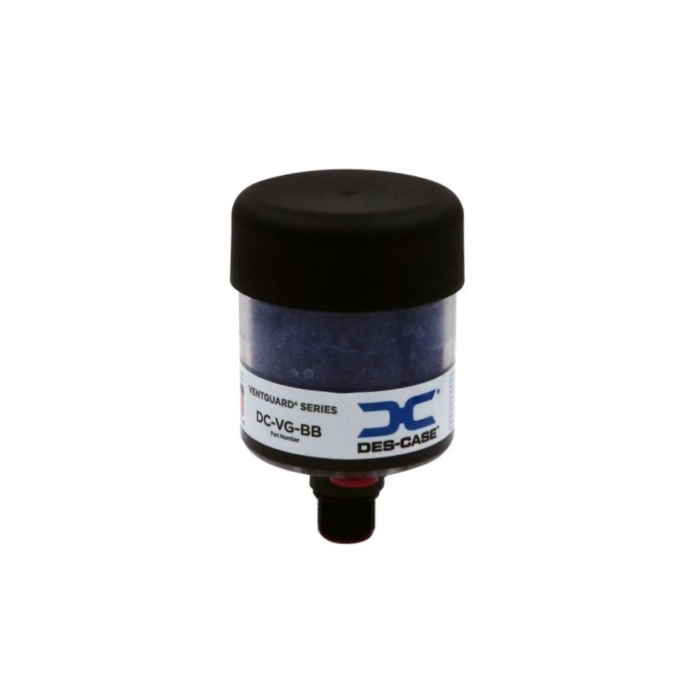

Des-Case DC-VG-BB VentGuard Desiccant Breather
Des-Case® VentGuard™ Series DC-VG-BB Disposable Desiccant Breather Filter, 0.1 lbs Blue Silica Gel, 3/8 In Male Connection, 1 CFM Flow Rate, 0.8 Fl Oz Adsorption Capacity, 3 Micron
Des-Case® VentGuard™ Series DC-VG-BB Disposable Desiccant Breather Filter, 0.1 lbs Blue Silica Gel, 3/8 In Male Connection, 1 CFM Flow Rate, 0.8 Fl Oz Adsorption Capacity, 3 Micron DC-VG-BB- Brand Name: Des-Case
- Part Number: DC-VG-BB
- Check Stock
-
$69.00
Add To Favorites ListIdeal For Low-Flow, Intermittent Applications
Des-Case VentGuard™ breathers have check-valve technology that isolates the system and only ‘breathes’ when necessary, making them an ideal solution to protect low-flow applications with intermittent operations. Check valves provide slight system pressurization that allows for controlled breathing without excessive pressure build-up. The system breathes only when pressured to do so, and then the air is cleaned and dried before it is introduced into the system, ensuring a clean, dry headspace. This control mechanism also prevents premature saturation of the silica gel and extends breather life, a problem not as easily tackled by standard desiccant breathers exposed to extreme moisture.
The First Line of Defense Against Contamination
The desiccant breather replaces the standard dust cap or OEM breather cap on equipment, offering better filtration to protect against even the smallest particulates that destroy the effectiveness of your machinery, and cause downtime and costly repairs. As air is drawn into equipment through the breather, the layered desiccant filter elements remove particulate while the desiccant beads strip harmful moisture. While in service or during shut-down, the desiccant beads attract moisture from inside the equipment reservoir, actively drying the equipment.
1. Domed Cap
A domed cap allows for better washdown runoff.
2. Integrated Nylon Standpipe
The integrated standpipe provides excellent vibration resistance and dissipates impact throughout the unit, eliminating weak points. It also allows even airflow distribution throughout the unit, eliminating inaccurate readings of desiccant saturation.
3. External Ribs
External ribs on shell to create greater durability and grip when installing or replacing breather.
4. Integrated Drip Ring
An integrated drip ring keeps shedding water from entering the vent holes.
5. Threaded Mounting
Easily replaces standard filler/breather cap with multi-fit connection or one of several adapters.
6. Larger, High-Capacity Check Valves
High-capacity check valves allow for increased airflow at low cracking pressure.
7. Filter Element
Polyester filter element removes airborne contamination to 3-micron absolute. Unique loops allow particles to release during system exhalation, helping to increase breather life.
8. Enhanced Seal
An enhanced seal eliminates potential for airflow bypass.
| Air Flow Rate | : | 1 CFM |
| Connection Size | : | 3/8 Inch |
| Connection Type | : | Multi-Fit (NPT, BSPP, BSPT) |
| Desiccant Capacity | : | 0.1 lbs |
| Desiccant Type | : | Blue to Pink Silica Gel |
| Filter Efficiency | : | 3 Micron |
| Filter Media | : | Polyester, Polyurethane |
| Housing Material | : | Nylon 6/6 30% Glass Filled, Polycarbonate, Polypropylene, Silicone |
| Overall Diameter | : | 2.52 Inch |
| Overall Height | : | 3.87 Inch |
| Reservoir Fluid Flow Rate | : | 11 GPM |
| Seal Material | : | Buna-N, EPDM, Silicone |
| Series | : | VentGuard™ |
| Style | : | Miniature |
| Suitable For Use With | : | Intermittent Operations, Gearboxes, Low-Flow Applications, High-Humidity, Washdown |
| Temperature Range | : | -20°F to 200°F |
| Volume | : | 2 Gallon (Hydraulic Reservoir), 15 Gallon (Gearbox/Storage Tank) |
| Water Adsorption Capacity | : | 0.8 Fl Oz |
- Check valve design reduces desiccant use by breathing only when needed
- Ideal for low-flow, intermittent applications like gearboxes and pumps
- Compatible with all mineral oils, most synthetic oils and diesel fuels
- All models are REACH compliant
