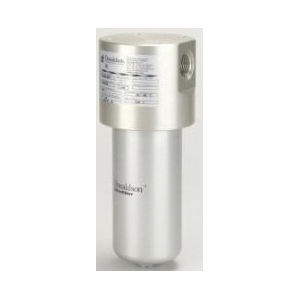

Donaldson 1C052873-63 Filter Housing, HD 0012, 5800 PSIG, 1/2" NPT , 316Ti Ss (OEM)
Donaldson® 1C052873-63 High Pressure Filter Housing, 1/2 in Port, NPT Port Connection, 316 Stainless Steel Housing
Donaldson® 1C052873-63 High Pressure Filter Housing, 1/2 in Port, NPT Port Connection, 316 Stainless Steel Housing 1C052873-63- Brand Name: Donaldson®
- Part Number: 1C052873-63
- Check Stock
-
$5059.00
Add To Favorites ListTwo-part housing with optimized construction offers low differential pressure at high flow rates. Different connections allow you to match your specific needs to any application. Donaldson® HD high pressure filter housings are designed for the purification of compressed air and gases in industrial operations. HD high pressure housings offer low differential pressure at high flow rates. A wide variety of filter elements are available to meet a broad range of application requirements. The HD high pressure filter housings are designed in accordance to ASME VIII, division 1.
Donaldson® High Pressure Filter Housing, Model: HD, 1/2 in Port, NPT Port Connection, 3600 scfm Flow Rate, 5800 psig, 14 to 176 deg F Operating, Perbunan Seal, 316 Stainless Steel Housing, Nickel-Plated Housing, 72 mm OD, 8.3 in Overall Height
| Flow Rate | : | 3600 scfm |
| Housing Finish | : | Nickel-Plated |
| Housing Material | : | 316 Stainless Steel |
| Model | : | HD |
| Operating Temperature | : | 14 to 176 deg F |
| Outside Diameter | : | 72 mm |
| Overall Height | : | 8.3 in |
| Port Connection Type | : | NPT |
| Port Size | : | 1/2 in |
| Pressure Rating | : | 5800 psig |
| Seal Material | : | Perbunan |
- Innovative filtration technology, high retention rate, low pressure loss
- Filter housing made of aluminum, steel, designed for operating pressure up to 400 bar and operating temperatures from -10 to 80 deg C
- For the purification of compressed air and gases according pressure equipment directive 2014/68/EU
- Flow optimized design for low differential pressure
