Donaldson® 1C079002 IDI_131378

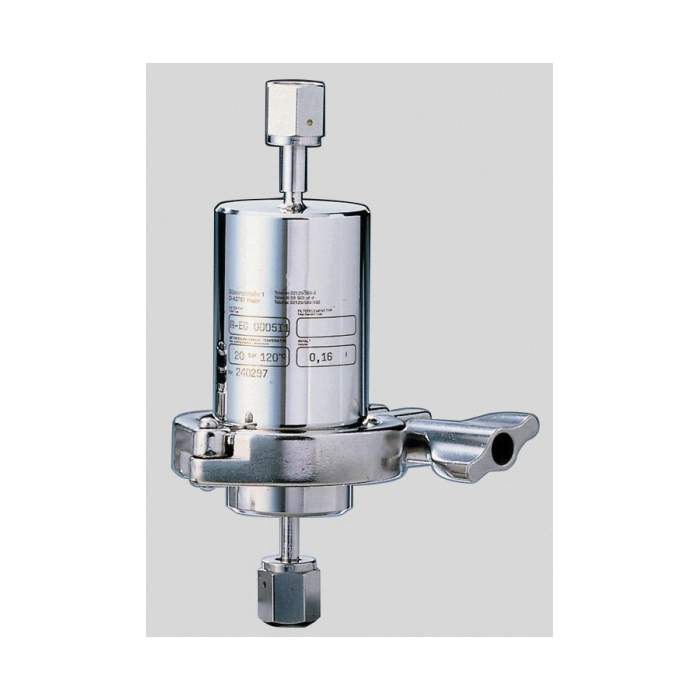

Donaldson 1C079002 Filter Housing R-EG 0005I1 "VCR 1/4" (F/F) Ra 08" (OEM)

Donaldson® 1C079002 Filter Housing, 1/4 in Port, Female VCR Port Connection, 1.4404/316L Stainless Steel Housing

Donaldson® 1C079002 Filter Housing, 1/4 in Port, Female VCR Port Connection, 1.4404/316L Stainless Steel Housing 1C079002

Donaldson® Filter Housing, Model: R-EG, 1/4 in Port, Female VCR Port Connection, 290 psi, -13 to 302 deg F Operating, FKM Seal, 1.4404/316L Stainless Steel Housing, Electro Polished Housing, 6.57 in Overall Height

Housing Finish      :      Electro Polished
Housing Material      :      1.4404/316L Stainless Steel
Model      :      R-EG
Operating Temperature      :      -13 to 302 deg F
Overall Height      :      6.57 in
Port Connection Type      :      Female VCR
Port Size      :      1/4 in
Pressure Rating      :      290 psi
Seal Material      :      FKM
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_1C079002_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/6a-zT-o8VeY
