Donaldson® 1C121522 IDI_131675

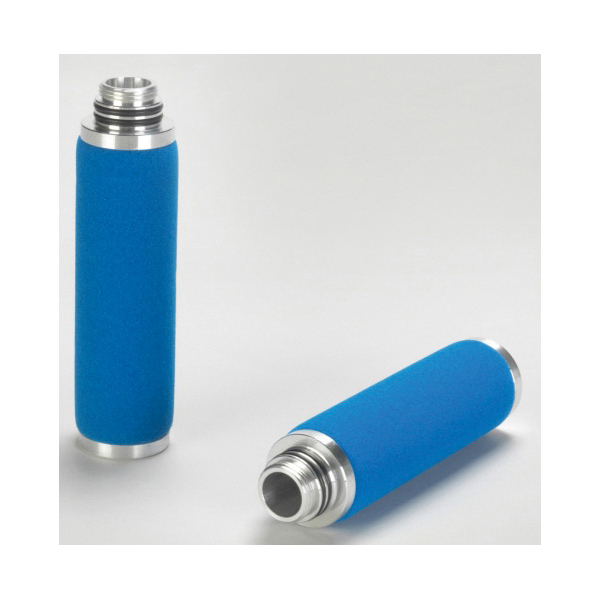

Donaldson 1C121522 Filter Element, MF 06/10 (OEM)

Donaldson® 1C121522 Filter Element, UF Threaded Connection, 0.01 um, Borosilicate Filter Media, 5.98 in OAH

Donaldson® 1C121522 Filter Element, UF Threaded Connection, 0.01 um, Borosilicate Filter Media, 5.98 in OAH 1C121522

Donaldson® MF UltraPleat® filter elements are designed for the removal of water and oil aerosols as well as solid particles from compressed air and gases with absolute retention efficiency at a low differential pressure. The coalescence filter elements are based on three dimensional microfiber fleece made of coated borosilicate glass fibers, oleo phobic and hydrophobic media. The MF UltraPleat® and MFP filter elements are suitable for AG, SG and HD filter housings. The P-MF filter elements are used in our P-EG and PG-EG housings.
Donaldson® Filter Element, Model: MF, UF Threaded Connection, 06/10 Element, 0.01 um, 176 deg F Operating, Borosilicate Filter Media, 1.65 in ID, 5.98 in Overall Height

Connection Type      :      UF Threaded
Element Size      :      06/10
Filter Media      :      Borosilicate
Micron Rating      :      0.01 um
Model      :      MF
Operating Temperature      :      176 deg F
Outside Diameter      :      1.65 in
Overall Height      :      5.98 in
  • Expanded inner and outer stainless steel sleeves for the secure hold of the filter medium - no danger of corrosion, large openings ensure low differential pressure drop and high throughput
  • Binder-free depth filter medium made out of borosilicate glass fibers - low differential pressure drop, high throughput
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_1C027020_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_1C121522_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/6a-zT-o8VeY
