Donaldson® 1C230169-82 IDI_132118

Donaldson 1C230169-82 LifeTec PT N 40" 0.2 Micron DOE E (OEM)

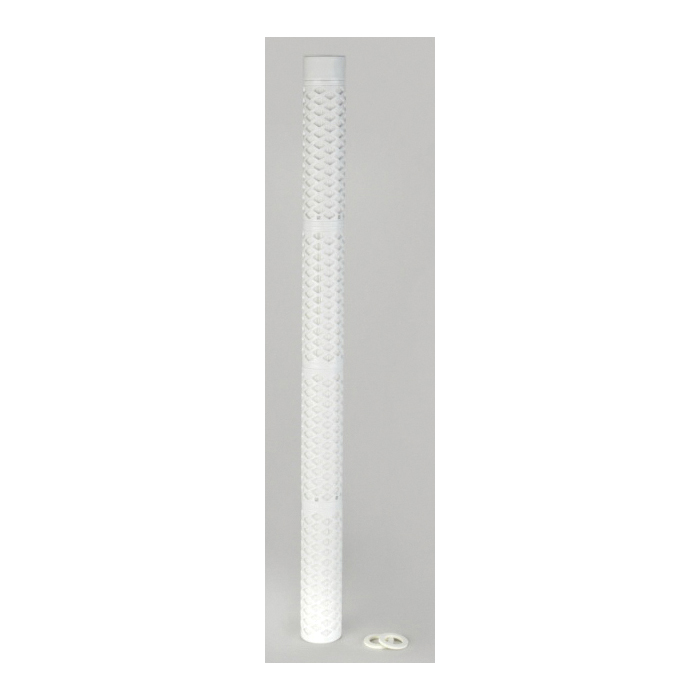

Donaldson® 1C230169-82 Filter Element, Double Open End With Flat Gasket Connection, 0.2 um, PTFE Membrane Filter Media

Donaldson® 1C230169-82 Filter Element, Double Open End With Flat Gasket Connection, 0.2 um, PTFE Membrane Filter Media 1C230169-82

The Donaldson® LifeTec™ PT N filter element with Tetratex® ePTFE membrane provides exceptional filtration performance, stability and durability in critical processed food and beverage applications. The innovative design allows for maximum durability, exceptional load capacity and outstanding impurity retention without shedding or unloading contaminants. Donaldson® Tetratex® ePTFE membrane media provides a 99.99% filter efficiency at 0.2 um. It has a retention rate LRV of 7 for 0.2 um contaminants.
Donaldson® Filter Element, Model: LifeTec™ PT N, Double Open End With Flat Gasket Connection, 40/3 Element, 0.2 um, 180 deg F Operating, PTFE Membrane Filter Media, 2 in ID, 39.9 in Overall Height

Connection Type      :      Double Open End With Flat Gasket
Element Size      :      40/3
Filter Media      :      PTFE Membrane
Micron Rating      :      0.2 um
Model      :      LifeTec™ PT N
Operating Temperature      :      180 deg F
Outside Diameter      :      2 in
Overall Height      :      39.9 in
  • Excellent material resistance towards aggressive contaminates
  • Donaldson® inherently hydrophobic Tetratex® ePTFE membrane
  • Sterile grade at 0.2 um (HIMA/ASTM)
  • Low pressure drop at high flow rates
  • Biologically inert
