Donaldson® D120035 IDI_144795

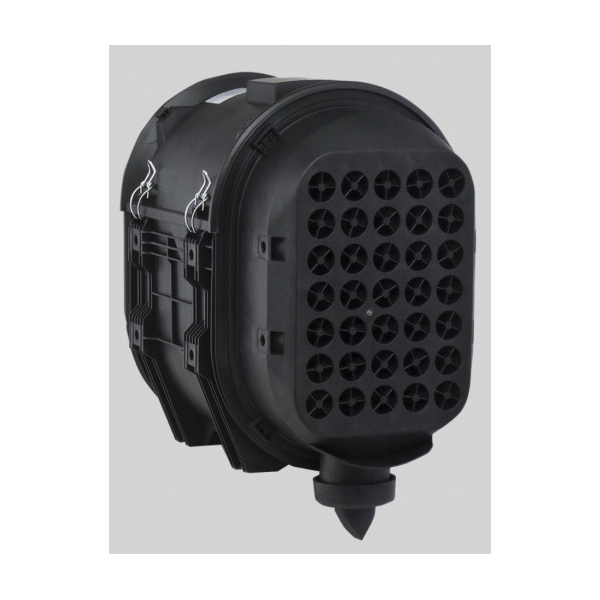

Donaldson D120035 Air Cleaner, PSD PowerCore (OEM)

Donaldson® PSD Series D120035 2-Stage Air Cleaner, 646 to 848 cfm, 19.53 in H

Donaldson® PSD Series D120035 2-Stage Air Cleaner, 646 to 848 cfm, 19.53 in H D120035

The PSD air cleaner family offers two-stage filtration in a single, compact unit that delivers superior filtration performance using Donaldson® PowerCore® filtration technology. This non-metal air cleaner (except for cover clamps) is ideal for equipment operating in medium to heavy dust environments.
Donaldson® 2-Stage Air Cleaner, PSD Series, Obround Shape, 646 to 848 cfm Flow Rate, 5.98 to 10 in-WC, -40 to 180 deg F, 19.53 in Height

Flow Rate      :      646 to 848 cfm
Height      :      19.53 in
Pressure Rating      :      5.98 to 10 in-WC
Series      :      PSD Series
Shape      :      Obround
Temperature Rating      :      -40 to 180 deg F
  • More compact at a given performance level than standard pleated filters
  • Non-metal filters
  • Built-in mounting brackets eliminate the need to purchase separate mounting bands
  • Improved contaminant encapsulation - dust and dirt stay contained in filter during service
  • High efficiency integrated precleaner improves filter life
  • Can be used with scavenge line or Vacuator™ valve
  • Improved engine protection - no media movement, expansion, contraction or bunching
  • Improved handling and maintenance - lighter and smaller, changing filters is a snap
  • Easily serviced, no tools required to remove or replace cover
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_D080020_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_D120035_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/7dGWNXSe1wo
