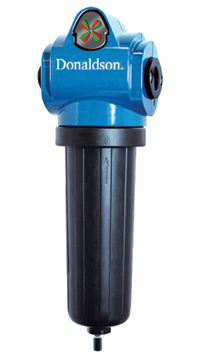

Replacement for Donaldson DF0450S Coalescing Filter Assembly (264 SCFM, 1-1/4" NPT with Gauge & Float Drain), 99.99998% on 0.01 Micron / <0.003 ppm Oil RemovalReplacement for Donaldson DF0450S Coalescing Filter Assembly (264 SCFM, 1-1/4" NPT with Gauge & Float Drain), 99.99998% on 0.01 Micron / <0.003 ppm Oil Removal 1C484660-63 & 1C486050
If you have questions call our customer service toll-free866-650-1937 or email [email protected]. Model Specifications Model Number Capacity1 (scfm) Connection (inches NPT) Particle Retention Rate Dimensions (inches) Model2 Style Weight3 (lbs) ReplacementElement Height Width Type Size Qty. DF0450S 264 1-1/4 99.999%on 0.01 micron 23 7.5 Standard 12 S 0450 1 1 Capacity based on 100 psig inlet pressure. 2 Standard: Standard with float condensate drainand Econometer. 3 Without filter element. Often called the pre-filter since it is placed onthe air line just prior to the air dryer, a coalescing filter removes oil,particles and moisture before it can come in contact with the desiccant in thedryer and ruin it. The Donaldson DF Filters are designedfor high quality filtration of compressed air or gas in a widerange of applications. The total filter design concept of thefilter combines high performance, efficiency, ease of use,flexibility, and safety. Features: Coalescer Filter Assembly IncludesFilter Element Particle Removal Rate: 99.999% on0.01 micron Residual Oil Content: <0.01ppm Initial ?p Dry (psid): 1.6 Initial ?p Wet (psid): 4.8 Variable Flow Rate: 20 scfm - 1500scfm Available Connection Sizes: 1/4" to3" NPT threaded Long-Term Protection AgainstCorrosion
ISS is an independent supplier of aftermarket replacement parts and is not affiliated with manufacturers mentioned in this listing. Original equipment manufacturer (OEM) names are the trademarks of each manufacturer. On products marked "equivalent", "replacement", or "aftermarket", OEM names and part numbers are for reference only.
