Donaldson® G092001 IDI_144844

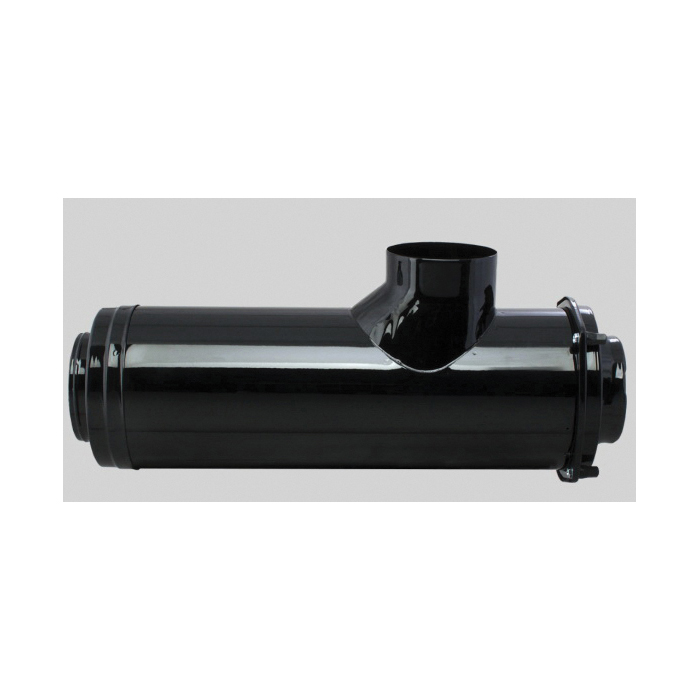

Donaldson G092001 Air Cleaner, ECG Konepac (OEM)

Donaldson® Konepac™ ECG Series G092001 Air Cleaner, 773 to 999 cfm, 9 in OD, 29.81 in H

Donaldson® Konepac™ ECG Series G092001 Air Cleaner, 773 to 999 cfm, 9 in OD, 29.81 in H G092001

Donaldson® Air Cleaner, ECG Series, Cone Shape, 773 to 999 cfm Flow Rate, 5.98 to 10 in-WC, 9 in OD, 29.81 in Height

Flow Rate      :      773 to 999 cfm
Height      :      29.81 in
Outside Diameter      :      9 in
Pressure Rating      :      5.98 to 10 in-WC
Series      :      ECG Series
Shape      :      Cone
  • Relatively small air cleaner with high airflow
  • Designed for horizontal installation with side inlet
  • Housing is metal and coated with a corrosion and chemical-resistant polymer paint
  • Direct engine mounting is not recommended due to excessive engine vibration
  • All models have service access cover opposite the outlet end of the air cleaner
  • Cone shaped filters, which we call Konepac™, allow maximum media in a small package
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_G092001_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_G092001_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/8xYpbTkgENk
