Donaldson® G210007 IDI_144907

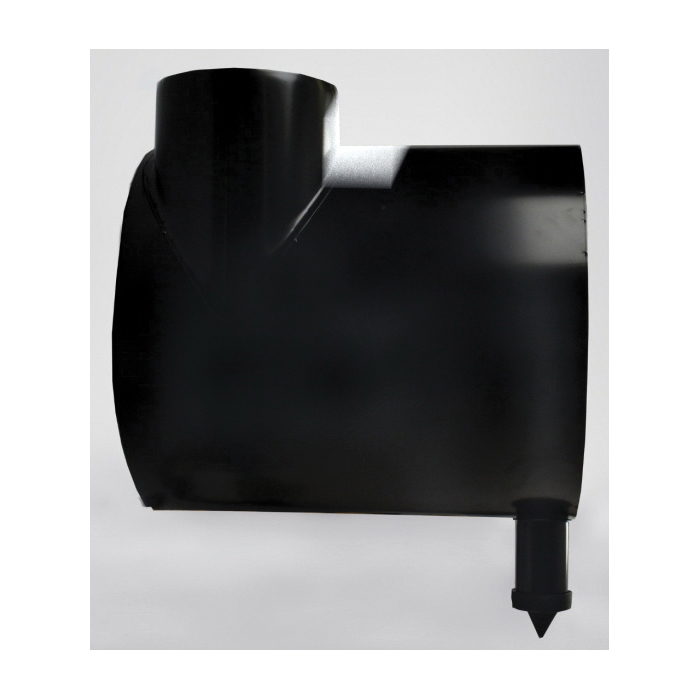

Donaldson G210007 Air Cleaner Assembly (OEM)

Donaldson® Cycloflow™ FTG Series G210007 2-Stage Axial Seal Air Cleaner, 1/8-27 Thread, 1448 to 1914 cfm, 21-1/2 in OD

Donaldson® Cycloflow™ FTG Series G210007 2-Stage Axial Seal Air Cleaner, 1/8-27 Thread, 1448 to 1914 cfm, 21-1/2 in OD G210007

Donaldson® 2-Stage Axial Seal Air Cleaner, FTG Series, 1/8-27 Thread, 1448 to 1914 cfm Flow Rate, 5.98 to 10 in-WC, 85 % Filter Efficiency, 179.6 deg F, 21-1/2 in OD, 27.68 in Height

Filter Efficiency      :      85 %
Flow Rate      :      1448 to 1914 cfm
Height      :      27.68 in
Outside Diameter      :      21-1/2 in
Pressure Rating      :      5.98 to 10 in-WC
Series      :      FTG Series
Temperature Rating      :      179.6 deg F
Thread Size      :      1/8-27
  • The FTG Cycloflow™ is a two-stage axial seal air cleaner that is typically used in large engines operating in medium to heavy dust conditions
  • Unique, flared inlet allows maximum airflow with low restriction
  • Two-stage filter system - the first stage removes up to 85% of incoming dust with a tangential air inlet
  • Inlet on side, outlet on end (G flow)
  • Safety filter protects engine inlet during filter change out
  • Vacuator™ valve automatically releases the pre-cleaned dust
  • Housing is metal and coated with a black, corrosion and chemical-resistant polymer paint
  • Mounting the unit directly to the engine is not recommended, excessive engine vibration can cause premature air cleaner structural failure
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_G210007_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_G210007_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/dlqqVU34pMw
