Donaldson® G290055 IDI_144911

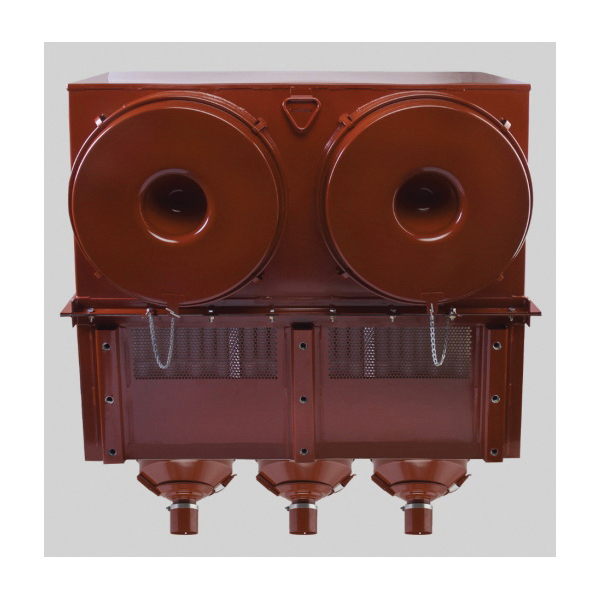

Donaldson G290055 Air Cleaner, SSG Donaclone Vertical (OEM)

Donaldson® Donaclone™ SSG Series G290055 2-Stage Air Cleaner, 4199 to 4796 cfm, 97 % Filter Efficiency, 19.68 in OD

Donaldson® Donaclone™ SSG Series G290055 2-Stage Air Cleaner, 4199 to 4796 cfm, 97 % Filter Efficiency, 19.68 in OD G290055

The SSG Donaclone™ is a two-stage RadialSeal™ air cleaner that is typically used for scrapers, earth movers, graders and haul trucks in heavy or extreme dust conditions.
Donaldson® 2-Stage Air Cleaner, SSG Series, 4199 to 4796 cfm Flow Rate, 5.98 to 7.99 in-WC, 97 % Filter Efficiency, 19.68 in OD, 42.99 in Width, 23-1/2 in Depth

Depth      :      23-1/2 in
Filter Efficiency      :      97 %
Flow Rate      :      4199 to 4796 cfm
Outside Diameter      :      19.68 in
Pressure Rating      :      5.98 to 7.99 in-WC
Series      :      SSG Series
Width      :      42.99 in
  • Dual outlet model
  • Inlet has perforated holes on three sides, rain shrouds available if required
  • Filters have urethane end caps with radial seal sealing technology
  • Built-in pre-cleaning tubes separate up to 97% of the incoming dust
  • Latch style cover with attached safety chain for faster and simpler filter service
  • Constructed of heavy gauge steel with a primed, ready-to-paint finish
  • Same overall package size as older Donaldson® SRG axial seal style housings
  • Replacement main filter choices - standard life filters (for scheduled maintenance) and Donaldson® Endurance™ extended service high efficiency filters
  • Air cleaners ship with the standard filters
  • Grab handles on the main filter to help remove the loaded filter during service
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_G200086_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_G290055_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/Qu5na79tEmg
