Donaldson® H001249 IDI_144953

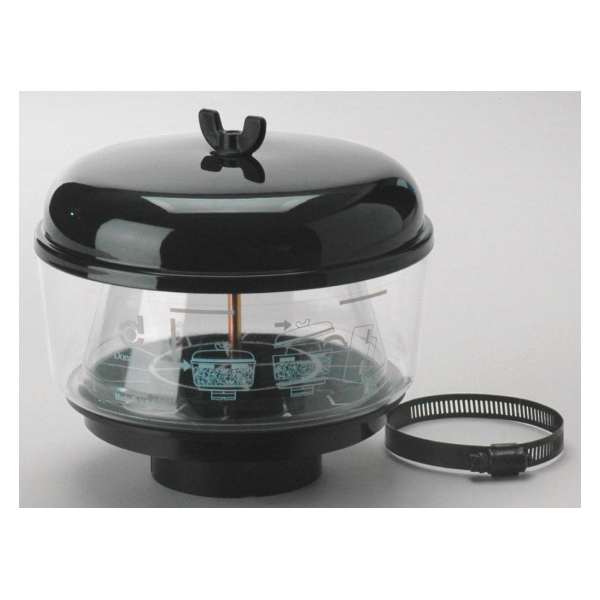

Donaldson H001249 Pre-Cleaner, Full View (OEM)

Donaldson® H001249 Full-View Pre-Cleaner, 170 cfm, Plastic

Donaldson® H001249 Full-View Pre-Cleaner, 170 cfm, Plastic H001249

Donaldson® Full-View Pre-Cleaner, Specifications: 3.02 in ID Outlet, 75% Efficiency, 2.99 to 0.98 in H2O Restriction, 170 cfm Flow Rate, Plastic, 7.34 in Diameter, 6.17 in Height

Diameter      :      7.34 in
Flow Rate      :      170 cfm
Height      :      6.17 in
Material      :      Plastic
Specifications      :      3.02 in ID Outlet, 75% Efficiency, 2.99 to 0.98 in H2O Restriction
  • Centrifugal force in bowl separates up to 75% of incoming dust before it enters the engine air intake system
  • Low maintenance
  • Durable, lightweight, non-corrosive construction
  • Full view plastic bowl lets operator easily see when service is needed
  • One-bolt cover retention for easy service
  • When dirt reaches the level of the arrow, remove top nut and plastic body, then empty
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_H001249_Specification_Sheet.pdf
