Donaldson® H002045 IDI_144981

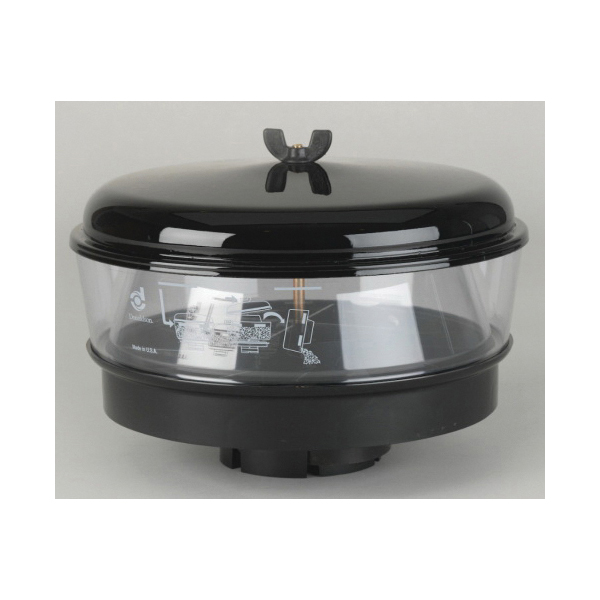

Donaldson H002045 Pre-Cleaner, Full View (OEM)

Donaldson® H002045 Full-View Pre-Cleaner, 660 cfm, Plastic

Donaldson® H002045 Full-View Pre-Cleaner, 660 cfm, Plastic H002045

Donaldson® Full-View Pre-Cleaner, Specifications: 4.03 in ID Outlet, 75% Efficiency, 2.99 to 0.98 in H2O Restriction, 660 cfm Flow Rate, Plastic, 12.06 in Diameter, 8.03 in Height

Diameter      :      12.06 in
Flow Rate      :      660 cfm
Height      :      8.03 in
Material      :      Plastic
Specifications      :      4.03 in ID Outlet, 75% Efficiency, 2.99 to 0.98 in H2O Restriction
  • Centrifugal force in bowl separates up to 75% of incoming dust before it enters the engine air intake system
  • Low maintenance
  • Durable, lightweight, non-corrosive construction
  • Full view plastic bowl lets operator easily see when service is needed
  • One-bolt cover retention for easy service
  • When dirt reaches the level of the arrow, remove top nut and plastic body, then empty
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_H002045_Specification_Sheet.pdf
