Donaldson® H002427 IDI_144989

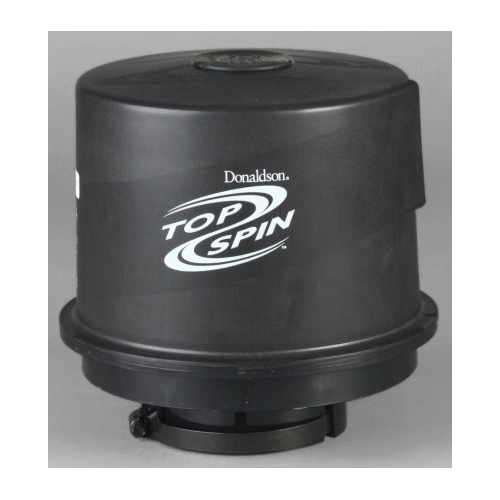

Donaldson H002427 Pre-Cleaner, TopSpin (OEM)

Donaldson® TopSpin™ H002427 Pre-Cleaner, 201 to 448 cfm, 20 um Filter

Donaldson® TopSpin™ H002427 Pre-Cleaner, 201 to 448 cfm, 20 um Filter H002427

Donaldson® TopSpin™ Pre-Cleaner, Specifications: 4.56 in ID Outlet, 85% Efficiency, 5 to 0.98 in H2O Restriction, -40 to 180 deg F Operating Temperature Rating, 201 to 448 cfm Flow Rate, 20 um Filter, 9.53 in Diameter, 9.39 in Height

Diameter      :      9.53 in
Filter Rating      :      20 um
Flow Rate      :      201 to 448 cfm
Height      :      9.39 in
Specifications      :      4.56 in ID Outlet, 85% Efficiency, 5 to 0.98 in H2O Restriction, -40 to 180 deg F Operating Temperature Rating
  • Donaldson® TopSpin™ will extend primary air filter life, boost system efficiency and extend engine life
  • Greatly extends air filter life
  • Reduces air filter usage
  • Lowers cost per operating hour
  • Automatically ejects mixed debris
  • Separates more than 99% of 20 um and above particles
  • Self-cleaning, self-scavenging
  • Easy installation
  • Dual mounted bearings
  • Primarily used in medium to heavy dust environments
  • Can be mounted horizontally or vertically
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_H002427_Specification_Sheet.pdf
