Donaldson® H002432 IDI_144991

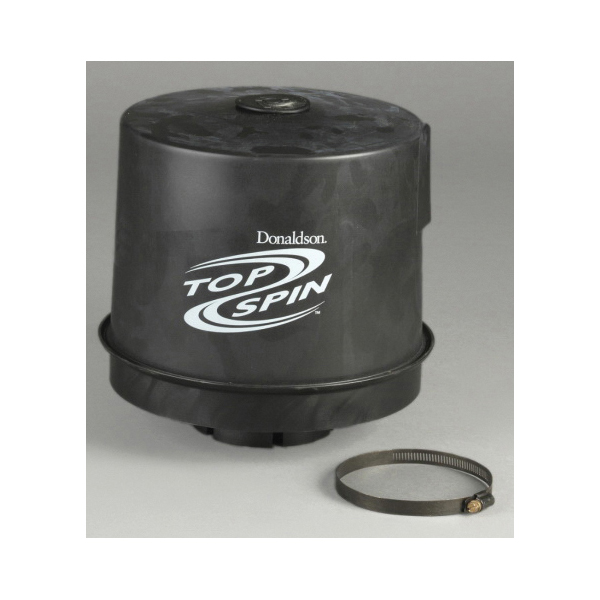

Donaldson H002432 Pre-Cleaner, TopSpin (OEM)

Donaldson® TopSpin™ HD H002432 Pre-Cleaner, 448 to 851 cfm, 20 um Filter

Donaldson® TopSpin™ HD H002432 Pre-Cleaner, 448 to 851 cfm, 20 um Filter H002432

Donaldson® TopSpin™ HD Pre-Cleaner, Specifications: 4.56 in ID Outlet, 85% Efficiency, 2.99 to 0.98 in H2O Restriction, -40 to 180 deg F Operating Temperature Rating, 448 to 851 cfm Flow Rate, 20 um Filter, 11.32 in Diameter, 11.3 in Height

Diameter      :      11.32 in
Filter Rating      :      20 um
Flow Rate      :      448 to 851 cfm
Height      :      11.3 in
Specifications      :      4.56 in ID Outlet, 85% Efficiency, 2.99 to 0.98 in H2O Restriction, -40 to 180 deg F Operating Temperature Rating
  • Donaldson® TopSpin™ will extend primary air filter life, boost system efficiency and extend engine life
  • Greatly extends air filter life
  • Reduces air filter usage
  • Lowers cost per operating hour
  • Automatically ejects mixed debris
  • Separates more than 99% of 20 um and above particles
  • Self-cleaning, self-scavenging
  • Easy installation
  • Dual mounted bearings
  • Primarily used in medium to heavy dust environments
  • Can be mounted horizontally or vertically
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_H002432_Specification_Sheet.pdf
