Donaldson® H002439 IDI_144998

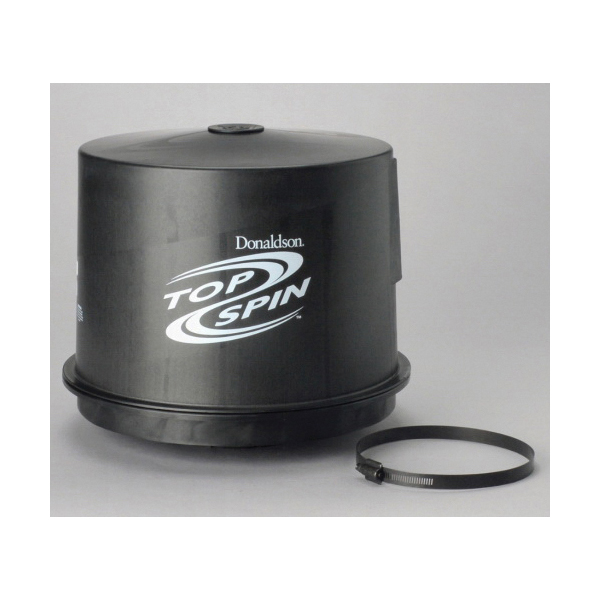

Donaldson H002439 Pre-Cleaner, TopSpin (OEM)

Donaldson® TopSpin™ H002439 Pre-Cleaner, 798 to 1501 cfm, 20 um Filter

Donaldson® TopSpin™ H002439 Pre-Cleaner, 798 to 1501 cfm, 20 um Filter H002439

Donaldson® TopSpin™ Pre-Cleaner, Specifications: 7.03 in ID Outlet, 85% Efficiency, 8.74 to 2.01 in H2O Restriction, -40 to 180 deg F Operating Temperature Rating, 798 to 1501 cfm Flow Rate, 20 um Filter, 15.62 in Diameter, 13.44 in Height

Diameter      :      15.62 in
Filter Rating      :      20 um
Flow Rate      :      798 to 1501 cfm
Height      :      13.44 in
Specifications      :      7.03 in ID Outlet, 85% Efficiency, 8.74 to 2.01 in H2O Restriction, -40 to 180 deg F Operating Temperature Rating
  • Donaldson® TopSpin™ will extend primary air filter life, boost system efficiency and extend engine life
  • Greatly extends air filter life
  • Reduces air filter usage
  • Lowers cost per operating hour
  • Automatically ejects mixed debris
  • Separates more than 99% of 20 um and above particles
  • Self-cleaning, self-scavenging
  • Easy installation
  • Dual mounted bearings
  • Primarily used in medium to heavy dust environments
  • Can be mounted horizontally or vertically
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_H002439_Specification_Sheet.pdf
