Donaldson® H008441 IDI_145025

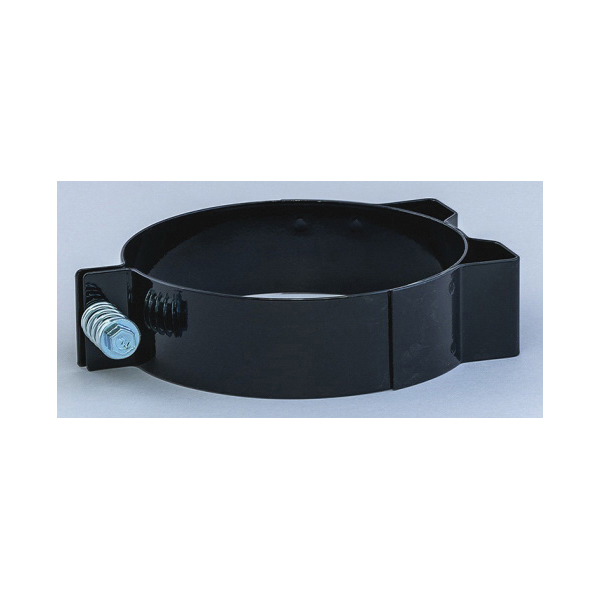

Donaldson H008441 Mounting Band (OEM)

Donaldson® H008441 Mounting Band, 8 mm Thread, Metal, For Use With: G065432, G065433 and G065411 Air Cleaners

Donaldson® H008441 Mounting Band, 8 mm Thread, Metal, For Use With: G065432, G065433 and G065411 Air Cleaners H008441

Donaldson® Mounting Band, Specifications: 3.54 in Bolt Hole Center Spacing, 0.35 in Dia Bolt Hole Circle, 3.94 in H Center, 11 ft-lb Maximum Belt Torque, 8 mm Thread, Metal, 6.79 in Diameter, 1.98 in Width, For Use With: G065432, G065433 and G065411 Air Cleaners

Diameter      :      6.79 in
Material      :      Metal
Specifications      :      3.54 in Bolt Hole Center Spacing, 0.35 in Dia Bolt Hole Circle, 3.94 in H Center, 11 ft-lb Maximum Belt Torque
Suitable For Use With      :      G065432, G065433 and G065411 Air Cleaners
Thread Size      :      8 mm
Width      :      1.98 in
  • The metal mounting band has a spring-loaded bolt at the top to maintain a constant hold on the housing throughout high and low temperature extremes
