Donaldson® H008444 IDI_145028

Donaldson H008444 Mounting Band (OEM)

Donaldson® H008444 Mounting Band, Metal, For Use With: G065432, G065433 and G065411 Air Cleaners

Donaldson® H008444 Mounting Band, Metal, For Use With: G065432, G065433 and G065411 Air Cleaners H008444

Donaldson® Mounting Band, Specifications: 3.54 in Bolt Hole Center Spacing, 0.35 in Dia Bolt Hole Circle, 3.94 in H Center, 11 ft-lb Maximum Belt Torque, Metal, 6.79 in Diameter, 1.98 in Width, For Use With: G065432, G065433 and G065411 Air Cleaners

Diameter      :      6.79 in
Material      :      Metal
Specifications      :      3.54 in Bolt Hole Center Spacing, 0.35 in Dia Bolt Hole Circle, 3.94 in H Center, 11 ft-lb Maximum Belt Torque
Suitable For Use With      :      G065432, G065433 and G065411 Air Cleaners
Width      :      1.98 in

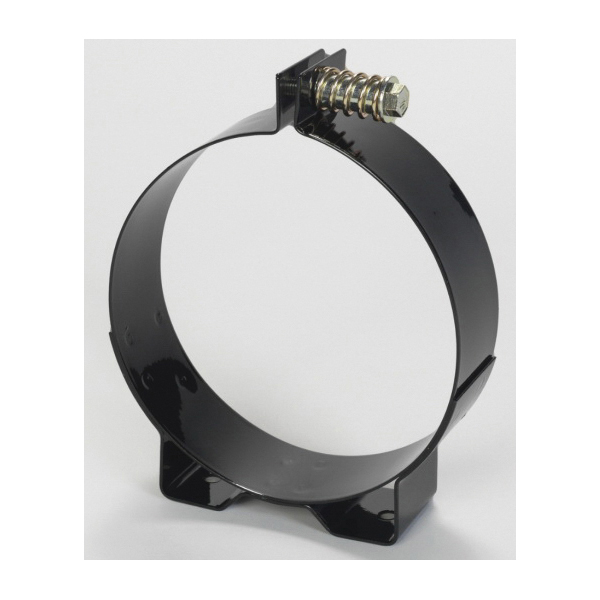

  • The metal mounting band has a spring-loaded bolt at the top to maintain a constant hold on the housing throughout high and low temperature extremes
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_H000165_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_H008444_Specification_Sheet.pdf
