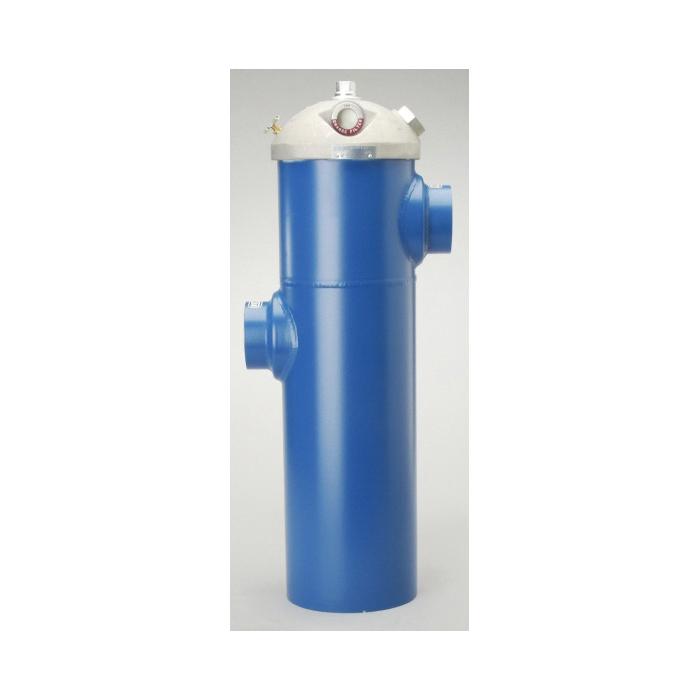

Donaldson K060160 Hydraulic Filter Assembly (OEM)

Donaldson® HDK06 K060160 In-Line Hydraulic Filter Assembly, 2-1/2 in Port, NPT Port Connection, Steel Housing

Donaldson® HDK06 K060160 In-Line Hydraulic Filter Assembly, 2-1/2 in Port, NPT Port Connection, Steel Housing K060160

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® In-Line Hydraulic Filter Assembly, Series: HDK06, 2-1/2 in Port, NPT Port Connection, 350 psi, 25 psi Bypass Pressure, -20 to 250 deg F Operating, Die Cast Aluminum Head, Nitrile Seal, Steel Housing, 25 in Overall Height

Bypass Pressure      :      25 psi
Head Material      :      Die Cast Aluminum
Housing Material      :      Steel
Operating Temperature      :      -20 to 250 deg F
Overall Height      :      25 in
Port Connection Type      :      NPT
Port Size      :      2-1/2 in
Pressure Rating      :      350 psi
Seal Material      :      Nitrile
Series      :      HDK06
  • Both styles feature a die cast aluminum head and steel body for strength and durability
  • Filter flow is inside to outside
  • Nitrile seals are standard
  • HDK06 assemblies come complete with our ß9© equals 1000-rated Synteq™ filter cartridge
  • HDK06 comes with an easy to read visual service indicator
