Donaldson® K080051 IDI_145218

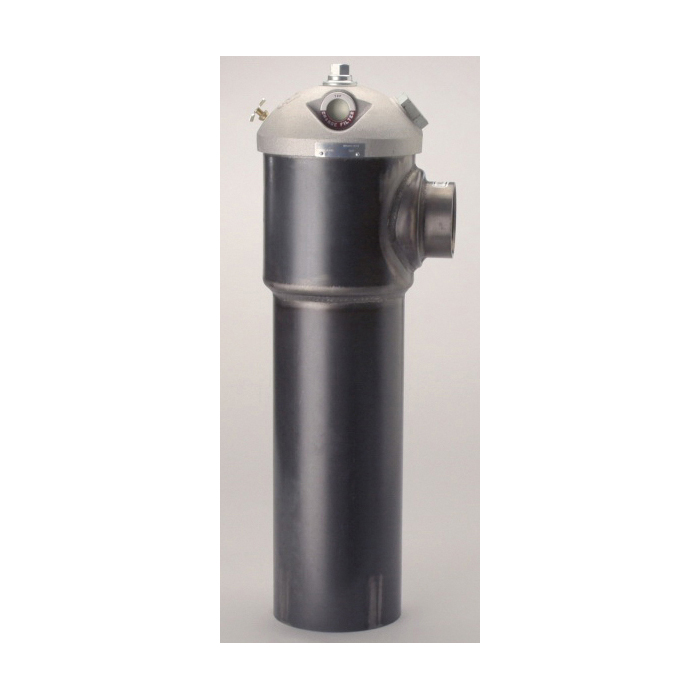

Donaldson K080051 Hydraulic Filter Assembly (OEM)

Donaldson® HFK08 K080051 Hydraulic Filter Assembly, 3 in Port, NPT Port Connection, 300 gpm, Tank Mounting

Donaldson® HFK08 K080051 Hydraulic Filter Assembly, 3 in Port, NPT Port Connection, 300 gpm, Tank Mounting K080051

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Hydraulic Filter Assembly, Series: HFK08, 3 in Port, NPT Port Connection, 300 gpm Flow Rate, 350 psi, 25 psi Bypass Pressure, -20 to 250 deg F Operating, Cast Aluminum Head, Tank Mounting, 32.28 in Overall Height

Bypass Pressure      :      25 psi
Flow Rate      :      300 gpm
Head Material      :      Cast Aluminum
Mounting Type      :      Tank
Operating Temperature      :      -20 to 250 deg F
Overall Height      :      32.28 in
Port Connection Type      :      NPT
Port Size      :      3 in
Pressure Rating      :      350 psi
Series      :      HFK08
  • Both styles feature a cast aluminum head and steel body for maximum strength and durability
  • Its single, center retention bolt simplifies servicing
  • Flow is from inside to outside of the filter cartridge
  • A visual service indicator is built into the HFK08 head
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_K080051_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
