Donaldson® K080087 IDI_145220

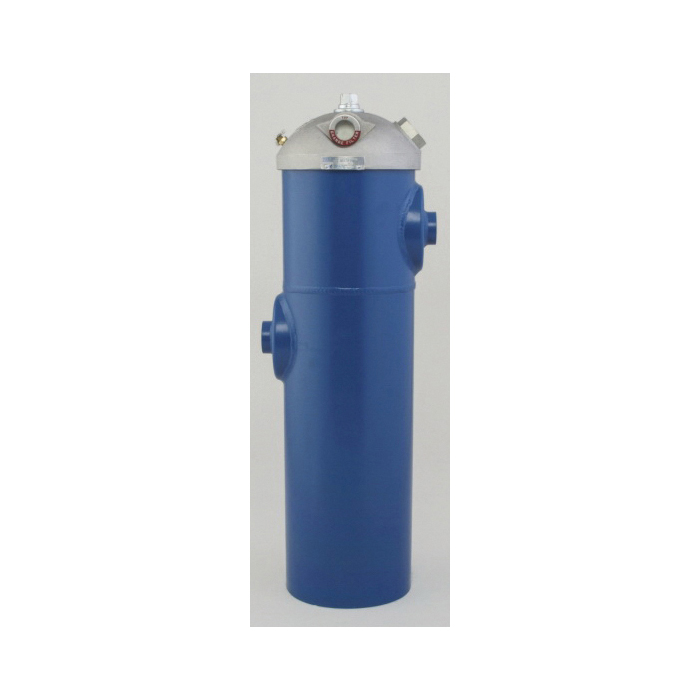

Donaldson K080087 Hydraulic Filter Assembly (OEM)

Donaldson® HFK08 K080087 In-Line Hydraulic Filter Assembly, SAE 20 Port, 300 gpm

Donaldson® HFK08 K080087 In-Line Hydraulic Filter Assembly, SAE 20 Port, 300 gpm K080087

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® In-Line Hydraulic Filter Assembly, Series: HFK08, SAE 20 Port, 300 gpm Flow Rate, 350 psi, 25 psi Bypass Pressure, -20 to 250 deg F Operating, Cast Aluminum Head, 29.88 in Overall Height

Bypass Pressure      :      25 psi
Flow Rate      :      300 gpm
Head Material      :      Cast Aluminum
Operating Temperature      :      -20 to 250 deg F
Overall Height      :      29.88 in
Port Size      :      SAE 20
Pressure Rating      :      350 psi
Series      :      HFK08
  • Both styles feature a cast aluminum head and steel body for maximum strength and durability
  • Its single, center retention bolt simplifies servicing
  • Flow is from inside to outside of the filter cartridge
  • A visual service indicator is built into the HFK08 head
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_K080087_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
