Donaldson® P164056 IDI_146003

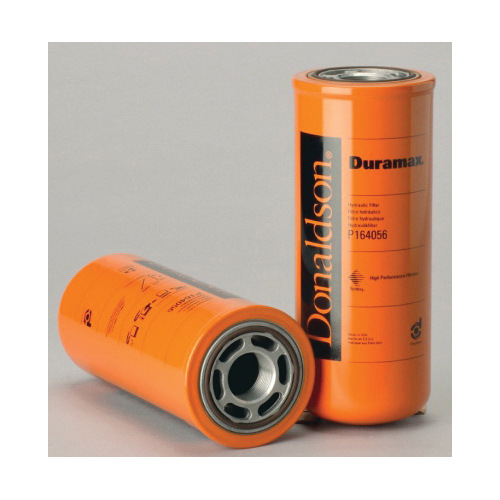

Donaldson P164056 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK04/24 P164056 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 13 um at Beta 1000

Donaldson® Duramax® HMK04/24 P164056 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 13 um at Beta 1000 P164056

HMK04 (single) and HMK24 (double) Duramax® spin-on filters feature a durable die cast aluminum head, heavy-duty steel body, with die cast aluminum top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both models use the same replacement filters and have identical pressure ratings, reducing inventory. Both filters have identical pressures, but the HMK24 handles greater flow capacity than the HMK04.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK04/24, 1-3/8-12 Port, UN Port Connection, Synthetic Media, 13 um at Beta 1000, 50% at 5 um Efficiency, 35 gpm, 60 gpm Flow Rate, 500 psi, -20 to 250 deg F Operating, Die Cast Aluminum Head, Fluorocarbon Seal, Steel Housing, 3.82 in OD, 9.44 in Overall Height, For Use With: Caterpillar 120M, 12M C6.6TA Acert Engine Grader, 216, 216B 3024 Engine Skid Steer Loader, 301.6, 301.8 Perkins 3003NA Engine Excavator Tracked, 446 3114, 446B 3114T Engine Backhoe Loader, 583T C15 Acert and 587R 3406C DITA Engine Pipe Layer

Efficiency      :      50% at 5 um
Flow Rate      :      35 gpm, 60 gpm
Head Material      :      Die Cast Aluminum
Housing Material      :      Steel
Media Type      :      Synthetic
Micron Rating      :      13 um at Beta 1000
Operating Temperature      :      -20 to 250 deg F
Outside Diameter      :      3.82 in
Overall Height      :      9.44 in
Port Connection Type      :      UN
Port Size      :      1-3/8-12
Pressure Rating      :      500 psi
Seal Material      :      Fluorocarbon
Series      :      HMK04/24
Suitable For Use With      :      Caterpillar 120M, 12M C6.6TA Acert Engine Grader, 216, 216B 3024 Engine Skid Steer Loader, 301.6, 301.8 Perkins 3003NA Engine Excavator Tracked, 446 3114, 446B 3114T Engine Backhoe Loader, 583T C15 Acert and 587R 3406C DITA Engine Pipe Layer
  • Strong, durable die cast aluminum head and heavy-duty steel body, with die cast aluminum top plate construction
  • Special head-to-canister O-ring seal prevents leakage
  • Nitrile seals are standard
  • Both models use the same replacement filters and feature identical pressure ratings, but the HMK24 handles greater flow capacity
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P163542_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P164056_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
