Donaldson® P164381 IDI_146031

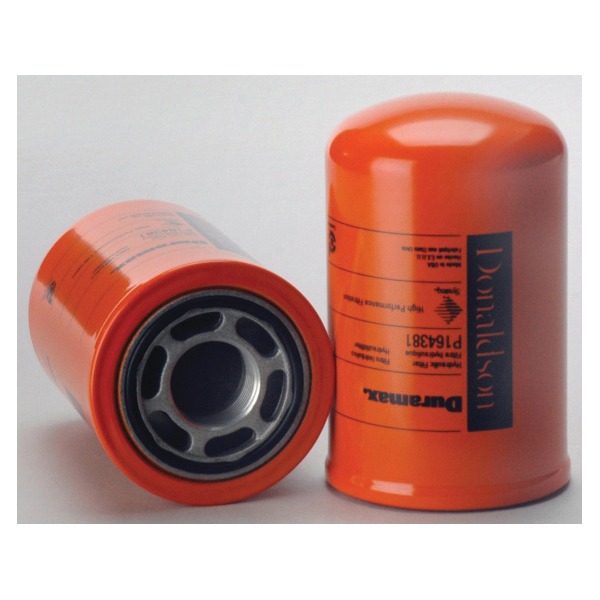

Donaldson P164381 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK04/24 P164381 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 35 gpm, 60 gpm

Donaldson® Duramax® HMK04/24 P164381 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 35 gpm, 60 gpm P164381

HMK04 (single) and HMK24 (double) Duramax® spin-on filters feature a durable die cast aluminum head, heavy-duty steel body, with die cast aluminum top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both models use the same replacement filters and have identical pressure ratings, reducing inventory. Both filters have identical pressures, but the HMK24 handles greater flow capacity than the HMK04.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK04/24, 1-3/8-12 Port, UN Port Connection, Synthetic Media, 7 um at Beta 2, 23 um at Beta 1000, 50% at 7 um Efficiency, 35 gpm, 60 gpm Flow Rate, 500 psi, -20 to 250 deg F Operating, Die Cast Aluminum Head, Nitrile Seal, Steel Housing, 3.82 in OD, 5.97 in Overall Height, For Use With: Bobcat 440B, 443B Engine Skid Steer Loader, 843I Engine Loader, Case/Case IH 2388, 8010 IH 10.3L Engine Combine, MX180 Cummins® 6CT8.3, MX200 Cummins® 6CTA8.3 Engine Tractor, Caterpillar 518C and 528B 3306T Engine Forestry Equipment

Efficiency      :      50% at 7 um
Flow Rate      :      35 gpm, 60 gpm
Head Material      :      Die Cast Aluminum
Housing Material      :      Steel
Media Type      :      Synthetic
Micron Rating      :      7 um at Beta 2, 23 um at Beta 1000
Operating Temperature      :      -20 to 250 deg F
Outside Diameter      :      3.82 in
Overall Height      :      5.97 in
Port Connection Type      :      UN
Port Size      :      1-3/8-12
Pressure Rating      :      500 psi
Seal Material      :      Nitrile
Series      :      HMK04/24
Suitable For Use With      :      Bobcat 440B, 443B Engine Skid Steer Loader, 843I Engine Loader, Case/Case IH 2388, 8010 IH 10.3L Engine Combine, MX180 Cummins® 6CT8.3, MX200 Cummins® 6CTA8.3 Engine Tractor, Caterpillar 518C and 528B 3306T Engine Forestry Equipment
  • Strong, durable die cast aluminum head and heavy-duty steel body, with die cast aluminum top plate construction
  • Special head-to-canister O-ring seal prevents leakage
  • Nitrile seals are standard
  • Both models use the same replacement filters and feature identical pressure ratings, but the HMK24 handles greater flow capacity
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P163542_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P164381_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
