Donaldson® P165659 IDI_146097

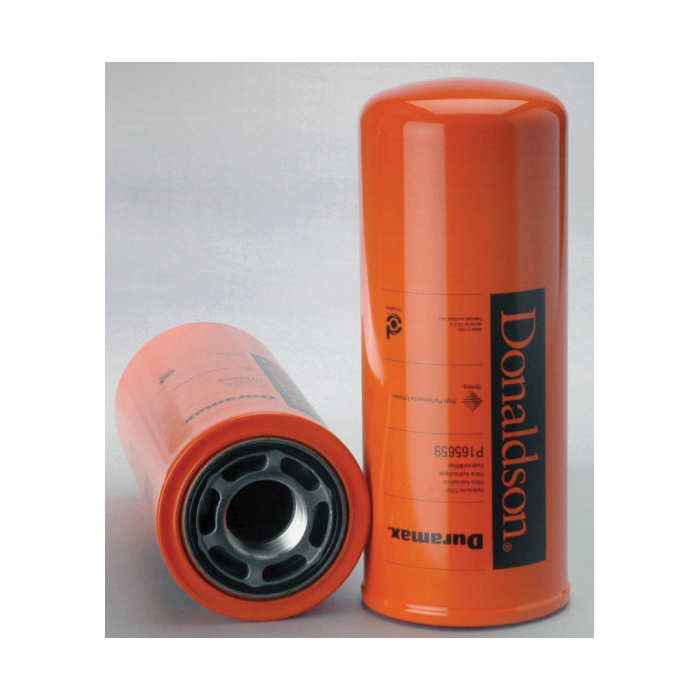

Donaldson P165659 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK05/25 P165659 Spin-On Hydraulic Filter, 1-3/4-12 Port, UN Port Connection, 50 gpm, 100 gpm

Donaldson® Duramax® HMK05/25 P165659 Spin-On Hydraulic Filter, 1-3/4-12 Port, UN Port Connection, 50 gpm, 100 gpm P165659

HMK05 (single) and HMK25 (double) Duramax® spin-on filters are perfect for high flow applications, featuring a heavy-duty steel body and die cast top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both HMK05 and HMK25 models use the same replacement filters, with identical pressure ratings, reducing inventory.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK05/25, 1-3/4-12 Port, UN Port Connection, Synteq™ XP™ Media, 4 um at Beta 2, 11 um at Beta 1000, 50% at 5 um Efficiency, 50 gpm, 100 gpm Flow Rate, 350 psi, -20 to 250 deg F Operating, Cast Aluminum Head, Nitrile Seal, Steel Housing, 4.76 in OD, 11.63 in Overall Height, For Use With: Atlas Copco MT5010 Engine Drilling Equipment, John Deere 690D, 690D R 6414T Engine Excavator, Case/Case IH 921 Cummins® LTA10, 921C Cummins® QSM11 Engine Loader, John Deere 693D, 693D 6068T Engine Feller Buncher, New Holland 555E and 675D Engine Backhoe Loader

Efficiency      :      50% at 5 um
Flow Rate      :      50 gpm, 100 gpm
Head Material      :      Cast Aluminum
Housing Material      :      Steel
Media Type      :      Synteq™ XP™
Micron Rating      :      4 um at Beta 2, 11 um at Beta 1000
Operating Temperature      :      -20 to 250 deg F
Outside Diameter      :      4.76 in
Overall Height      :      11.63 in
Port Connection Type      :      UN
Port Size      :      1-3/4-12
Pressure Rating      :      350 psi
Seal Material      :      Nitrile
Series      :      HMK05/25
Suitable For Use With      :      Atlas Copco MT5010 Engine Drilling Equipment, John Deere 690D, 690D R 6414T Engine Excavator, Case/Case IH 921 Cummins® LTA10, 921C Cummins® QSM11 Engine Loader, John Deere 693D, 693D 6068T Engine Feller Buncher, New Holland 555E and 675D Engine Backhoe Loader
  • Strong, durable heavy-duty steel body and die cast top plate construction
  • Special head-to-canister O-ring seal prevents leakage
  • Nitrile seals are standard
  • Both models use the same replacement filters and have identical pressure ratings, so there's no need to inventory two different replacement filters
  • The HMK25 double filter head means twice the flow capability, with two filters to hold more contaminant
