Donaldson® P167796 IDI_146193

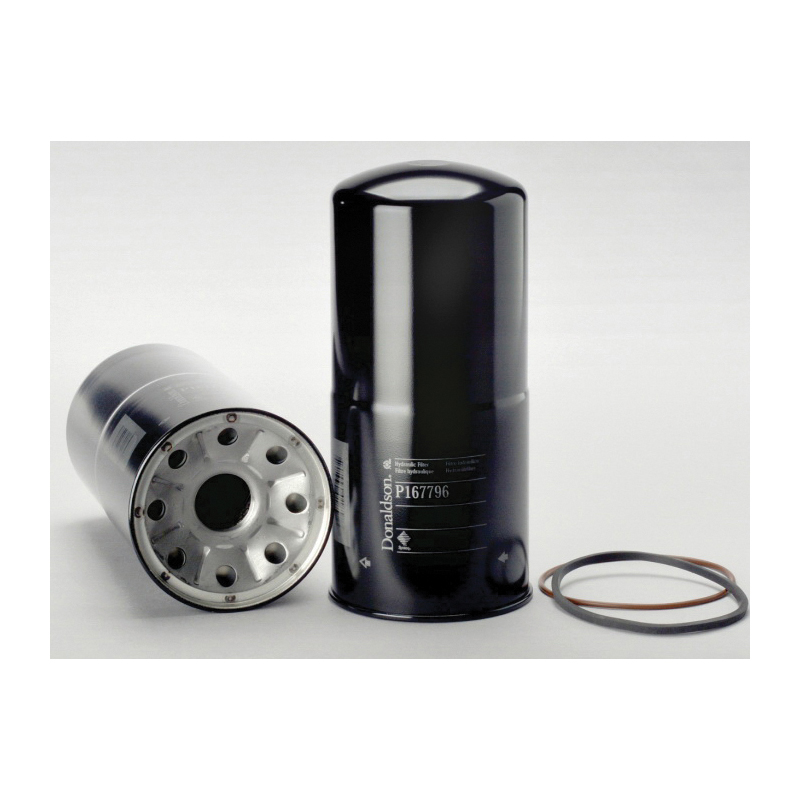

Donaldson P167796 Hydraulic Filter, Spin-On (OEM)

Donaldson® P167796 Spin-On Hydraulic Filter, 1-1/2-16 Port, UN Port Connection, 4 um at Beta 1000

Donaldson® P167796 Spin-On Hydraulic Filter, 1-1/2-16 Port, UN Port Connection, 4 um at Beta 1000 P167796

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Spin-On Hydraulic Filter, 1-1/2-16 Port, UN Port Connection, Synthetic Media, 4 um at Beta 1000, 99% at 2 um Efficiency, 5.08 in OD, 10.66 in Overall Height, For Use With: Caterpillar AP800B Perkins T4.236 Engine Paver, CP433C, CS431C 3054T, CP533C, CP563C 3116T Engine Compactor, RM300 C11 Acert and RM500 C15 Acert Engine Road Stabilizer

Efficiency      :      99% at 2 um
Media Type      :      Synthetic
Micron Rating      :      4 um at Beta 1000
Outside Diameter      :      5.08 in
Overall Height      :      10.66 in
Port Connection Type      :      UN
Port Size      :      1-1/2-16
Suitable For Use With      :      Caterpillar AP800B Perkins T4.236 Engine Paver, CP433C, CS431C 3054T, CP533C, CP563C 3116T Engine Compactor, RM300 C11 Acert and RM500 C15 Acert Engine Road Stabilizer
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P167796_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
