Donaldson® P169078 IDI_146218

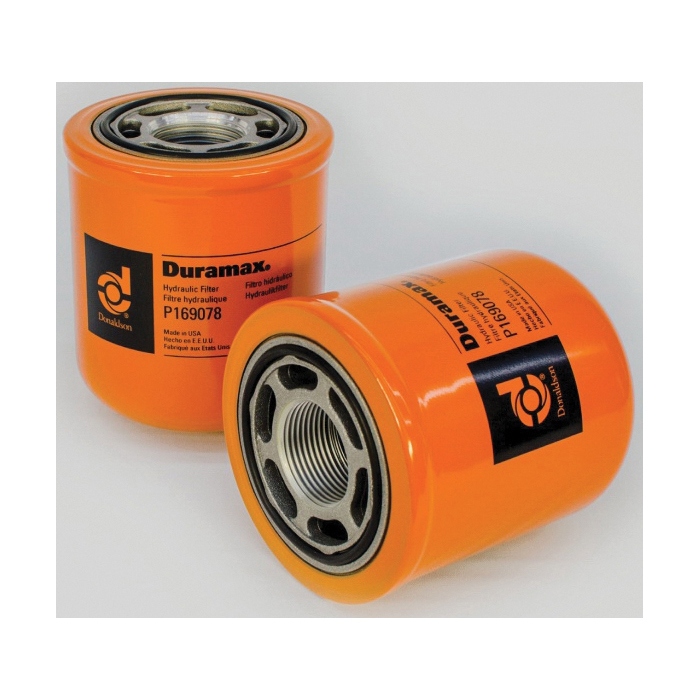

Donaldson P169078 Hydraulic Filter, Spin-On (OEM)

Donaldson® P169078 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 7 um at Beta 2, 23 um at Beta 1000

Donaldson® P169078 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 7 um at Beta 2, 23 um at Beta 1000 P169078

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, Synthetic Media, 7 um at Beta 2, 23 um at Beta 1000, 50% at 10 um Efficiency, 3.82 in OD, 4.47 in Overall Height, For Use With: Bobcat S650 Kubota V3307DIT Engine Skid Steer Loader, John Deere 2500, 2500A Engine Lawn Equipment, 4200 Yanmar 3TNE78, 4210 Yanmar 3TNE82 Engine Tractor, F1145 Yanmar 3TN75, Yanmar 3TN78 Engine Equipment, Toro Reelmaster 5100D and 5200D Engine Mower

Efficiency      :      50% at 10 um
Media Type      :      Synthetic
Micron Rating      :      7 um at Beta 2, 23 um at Beta 1000
Outside Diameter      :      3.82 in
Overall Height      :      4.47 in
Port Connection Type      :      UN
Port Size      :      1-3/8-12
Suitable For Use With      :      Bobcat S650 Kubota V3307DIT Engine Skid Steer Loader, John Deere 2500, 2500A Engine Lawn Equipment, 4200 Yanmar 3TNE78, 4210 Yanmar 3TNE82 Engine Tractor, F1145 Yanmar 3TN75, Yanmar 3TN78 Engine Equipment, Toro Reelmaster 5100D and 5200D Engine Mower
