Donaldson® P169985 IDI_146253

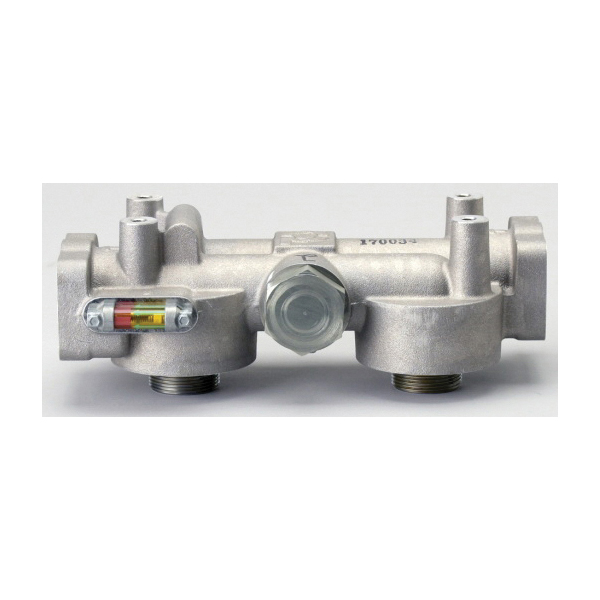

Donaldson P169985 Head Assembly, HMK25 Duramax (OEM)

Donaldson® Duramax® Clean Solutions P169985 Head Assembly, Dual Head, 1-1/2-11-1/2 Port, NPT Port Connection

Donaldson® Duramax® Clean Solutions P169985 Head Assembly, Dual Head, 1-1/2-11-1/2 Port, NPT Port Connection P169985

Donaldson® Clean Solutions heads feature robust, aluminum construction. Combined with the proper Clean Solutions filters, these heads are an integral part of ensuring your critical equipment receives the cleanest possible fuel and oil.
Donaldson® Duramax® Head Assembly, Series: Clean Solutions, Dual Head, 1-1/2-11-1/2 Port, NPT Port Connection, 50 gpm, 100 gpm Flow Rate, 25 psi, Fluorocarbon Seal, Aluminum Head, 5.14 in Overall Height, For Use With: HMK25 Spin-On Filters

Flow Rate      :      50 gpm, 100 gpm
Head Material      :      Aluminum
Head Type      :      Dual
Overall Height      :      5.14 in
Port Connection Type      :      NPT
Port Size      :      1-1/2-11-1/2
Pressure Rating      :      25 psi
Seal Material      :      Fluorocarbon
Series      :      Clean Solutions
Suitable For Use With      :      HMK25 Spin-On Filters
  • Aluminum head with steel inserts to minimize metal-to-metal bonding or galling between the head and filter
  • Fluorocarbon seals are compatible with most fluids
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P169985_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/yy6MU1jqSeU?list=PLKk8NIsN95-bED4I44iVhmNPxU3rY3qV7
