Donaldson® P170310 IDI_146273

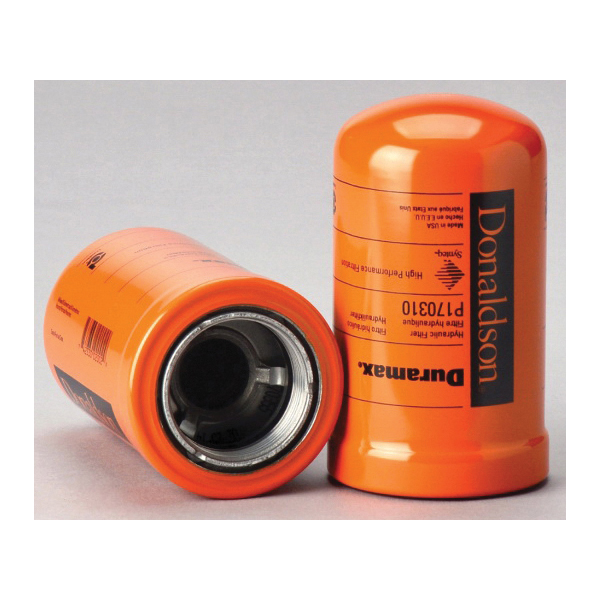

Donaldson P170310 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK03 P170310 Spin-On Hydraulic Filter, #2-12 Port, UN Port Connection, 6 um at Beta 1000

Donaldson® Duramax® HMK03 P170310 Spin-On Hydraulic Filter, #2-12 Port, UN Port Connection, 6 um at Beta 1000 P170310

HMK03 series Duramax® spin-on filters offer twice the capacity of competitive filters, yet they are physically smaller than traditional housing/cartridge filter assemblies. They deliver a strong, durable die cast aluminum head construction and a unique radial seal O-ring gasket design that eliminates leakage.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK03, #2-12 Port, UN Port Connection, Synthetic Media, 6 um at Beta 1000, 50% at 5 um Efficiency, 25 gpm Flow Rate, 1000 psi, 50 psi Bypass Pressure, -20 to 250 deg F Operating, Die Cast Aluminum Head, 3.13 in OD, 5.52 in Overall Height, For Use With: Caterpillar 320 3066T, 320B 3116T Engine Excavator Tracked, 330CFP 3304B, TK1051 Engine Forestry Equipment, 950G 3126TA, 950G II 3126BTA4 Engine Loader Wheeled, M325B 3116, W345B II 3176 ATAA Engine Excavator Wheeled and W345BMH II Engine Misc Equipment

Bypass Pressure      :      50 psi
Efficiency      :      50% at 5 um
Flow Rate      :      25 gpm
Head Material      :      Die Cast Aluminum
Media Type      :      Synthetic
Micron Rating      :      6 um at Beta 1000
Operating Temperature      :      -20 to 250 deg F
Outside Diameter      :      3.13 in
Overall Height      :      5.52 in
Port Connection Type      :      UN
Port Size      :      #2-12
Pressure Rating      :      1000 psi
Series      :      HMK03
Suitable For Use With      :      Caterpillar 320 3066T, 320B 3116T Engine Excavator Tracked, 330CFP 3304B, TK1051 Engine Forestry Equipment, 950G 3126TA, 950G II 3126BTA4 Engine Loader Wheeled, M325B 3116, W345B II 3176 ATAA Engine Excavator Wheeled and W345BMH II Engine Misc Equipment
  • Strong, durable die cast aluminum head
  • Special radial seal O-ring gasket design that eliminates leakage
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P170308_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P170310_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
