Donaldson® P170311 IDI_146274

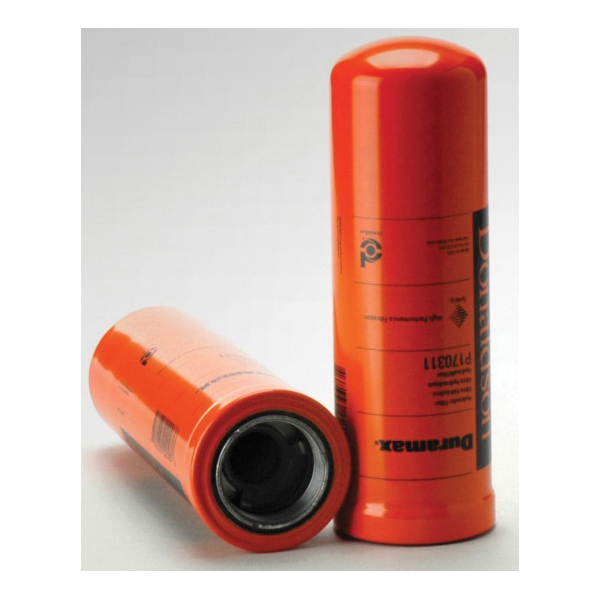

Donaldson P170311 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK03 P170311 Spin-On Hydraulic Filter, #2-12 Port, UN Port Connection, 6 um at Beta 1000

Donaldson® Duramax® HMK03 P170311 Spin-On Hydraulic Filter, #2-12 Port, UN Port Connection, 6 um at Beta 1000 P170311

HMK03 series Duramax® spin-on filters offer twice the capacity of competitive filters, yet they are physically smaller than traditional housing/cartridge filter assemblies. They deliver a strong, durable die cast aluminum head construction and a unique radial seal O-ring gasket design that eliminates leakage.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK03, #2-12 Port, UN Port Connection, Synthetic Media, 6 um at Beta 1000, 50% at 5 um Efficiency, 25 gpm Flow Rate, 1000 psi, 50 psi Bypass Pressure, -20 to 250 deg F Operating, Die Cast Aluminum Head, 3.13 in OD, 9.52 in Overall Height, For Use With: AG Chem Equipment 544 Cummins® 4B3.9, 844 Cummins® 6BTA5.9 Engine Sprayer, Caterpillar 350 3306TA, 365B 3196 Engine Excavator Tracked, 385CMHPU C18 Acert Engine Power Unit, 769D 3408TAE, 770 C15 Acert Engine Dump Truck, RM350 3406C and RM350B 3406D DITA Engine Road Stabilizer

Bypass Pressure      :      50 psi
Efficiency      :      50% at 5 um
Flow Rate      :      25 gpm
Head Material      :      Die Cast Aluminum
Media Type      :      Synthetic
Micron Rating      :      6 um at Beta 1000
Operating Temperature      :      -20 to 250 deg F
Outside Diameter      :      3.13 in
Overall Height      :      9.52 in
Port Connection Type      :      UN
Port Size      :      #2-12
Pressure Rating      :      1000 psi
Series      :      HMK03
Suitable For Use With      :      AG Chem Equipment 544 Cummins® 4B3.9, 844 Cummins® 6BTA5.9 Engine Sprayer, Caterpillar 350 3306TA, 365B 3196 Engine Excavator Tracked, 385CMHPU C18 Acert Engine Power Unit, 769D 3408TAE, 770 C15 Acert Engine Dump Truck, RM350 3406C and RM350B 3406D DITA Engine Road Stabilizer
  • Strong, durable die cast aluminum head
  • Special radial seal O-ring gasket design that eliminates leakage
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P170308_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P170311_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
