Donaldson® P170312 IDI_146275

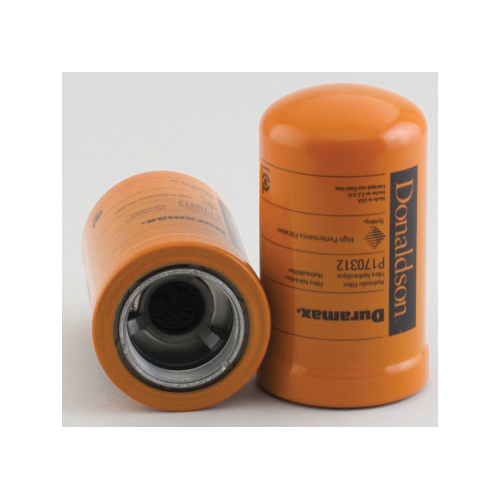

Donaldson P170312 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK03 P170312 Spin-On Hydraulic Filter, #2-12 Port, UN Port Connection, 6 um at Beta 1000

Donaldson® Duramax® HMK03 P170312 Spin-On Hydraulic Filter, #2-12 Port, UN Port Connection, 6 um at Beta 1000 P170312

HMK03 series Duramax® spin-on filters offer twice the capacity of competitive filters, yet they are physically smaller than traditional housing/cartridge filter assemblies. They deliver a strong, durable die cast aluminum head construction and a unique radial seal O-ring gasket design that eliminates leakage.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK03, #2-12 Port, UN Port Connection, Synthetic Media, 6 um at Beta 1000, 50% at 10 um Efficiency, 25 gpm Flow Rate, 1000 psi, 50 psi Bypass Pressure, -20 to 250 deg F Operating, Die Cast Aluminum Head, 3.13 in OD, 5.52 in Overall Height, For Use With: John Deere 9000 Engine Tractors

Bypass Pressure      :      50 psi
Efficiency      :      50% at 10 um
Flow Rate      :      25 gpm
Head Material      :      Die Cast Aluminum
Media Type      :      Synthetic
Micron Rating      :      6 um at Beta 1000
Operating Temperature      :      -20 to 250 deg F
Outside Diameter      :      3.13 in
Overall Height      :      5.52 in
Port Connection Type      :      UN
Port Size      :      #2-12
Pressure Rating      :      1000 psi
Series      :      HMK03
Suitable For Use With      :      John Deere 9000 Engine Tractors
  • Strong, durable die cast aluminum head
  • Special radial seal O-ring gasket design that eliminates leakage
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P170308_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P170312_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
