Donaldson® P173738 IDI_146588

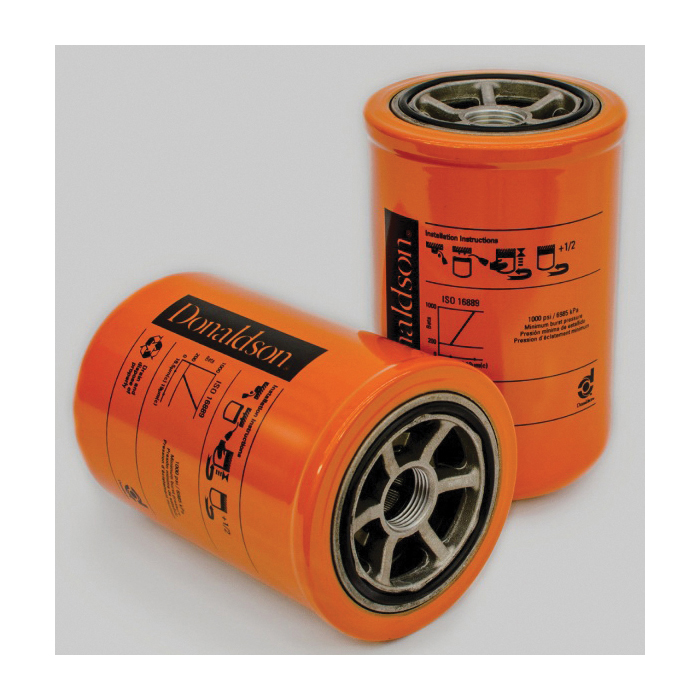

Donaldson P173738 Hydraulic Filter, Spin-On (OEM)

Donaldson® P173738 Spin-On Hydraulic Filter, 7/8-14 Port, UN Port Connection, 23 um at Beta 1000

Donaldson® P173738 Spin-On Hydraulic Filter, 7/8-14 Port, UN Port Connection, 23 um at Beta 1000 P173738

Anything but standard hydraulic performance. We offer a complete line of hydraulic filters and cartridges for low, medium and high pressure applications. Each is also available in a range of media efficiencies to meet specific application requirements.
Donaldson® Spin-On Hydraulic Filter, 7/8-14 Port, UN Port Connection, Synthetic Media, 23 um at Beta 1000, 50% at 7 um Efficiency, 51 psi Bypass Pressure, 3.82 in OD, 5.97 in Overall Height, For Use With: Clark CMP30, GCS15-17, GPS20WC and GPS30WC Waukesha D176 Engine Forklift

Bypass Pressure      :      51 psi
Efficiency      :      50% at 7 um
Media Type      :      Synthetic
Micron Rating      :      23 um at Beta 1000
Outside Diameter      :      3.82 in
Overall Height      :      5.97 in
Port Connection Type      :      UN
Port Size      :      7/8-14
Suitable For Use With      :      Clark CMP30, GCS15-17, GPS20WC and GPS30WC Waukesha D176 Engine Forklift
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P173738_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
