Donaldson® P174675 IDI_146637

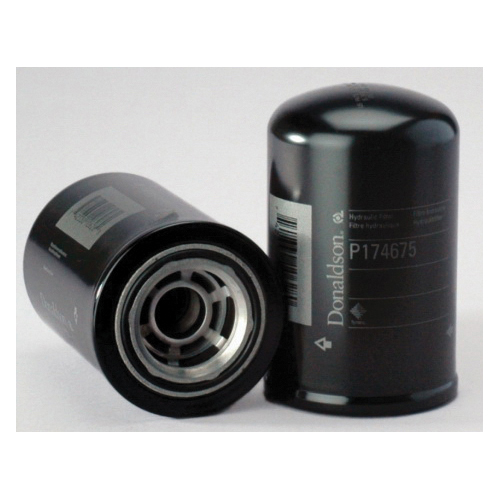

Donaldson P174675 Hydraulic Filter, Spin-On (OEM)

Donaldson® P174675 Spin-On Hydraulic Filter, #2-16 Port, UN Port Connection, 23 um at Beta 1000

Donaldson® P174675 Spin-On Hydraulic Filter, #2-16 Port, UN Port Connection, 23 um at Beta 1000 P174675

Anything but standard hydraulic performance. We offer a complete line of hydraulic filters and cartridges for low, medium and high pressure applications. Each is also available in a range of media efficiencies to meet specific application requirements.
Donaldson® Spin-On Hydraulic Filter, #2-16 Port, UN Port Connection, Synthetic Media, 23 um at Beta 1000, 50% at 7 um Efficiency, 30 psi LR, 51 psi HR Bypass Pressure, 3.82 in OD, 5.97 in Overall Height, For Use With: Case/Case IH 680 A336BDT, A336BD Engine Backhoe Loader, 780B, 780C Cummins® 6BT5.9 Engine Tractor, Caterpillar PF300B 3054E, PF300C 3054C Engine Compactor, TH103, TH62 3054T Engine Telehander, Clark GCS20MB and GCS20MC Mitsubishi 4G54 Engine Forklift

Bypass Pressure      :      30 psi LR, 51 psi HR
Efficiency      :      50% at 7 um
Media Type      :      Synthetic
Micron Rating      :      23 um at Beta 1000
Outside Diameter      :      3.82 in
Overall Height      :      5.97 in
Port Connection Type      :      UN
Port Size      :      #2-16
Suitable For Use With      :      Case/Case IH 680 A336BDT, A336BD Engine Backhoe Loader, 780B, 780C Cummins® 6BT5.9 Engine Tractor, Caterpillar PF300B 3054E, PF300C 3054C Engine Compactor, TH103, TH62 3054T Engine Telehander, Clark GCS20MB and GCS20MC Mitsubishi 4G54 Engine Forklift
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P174675_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
