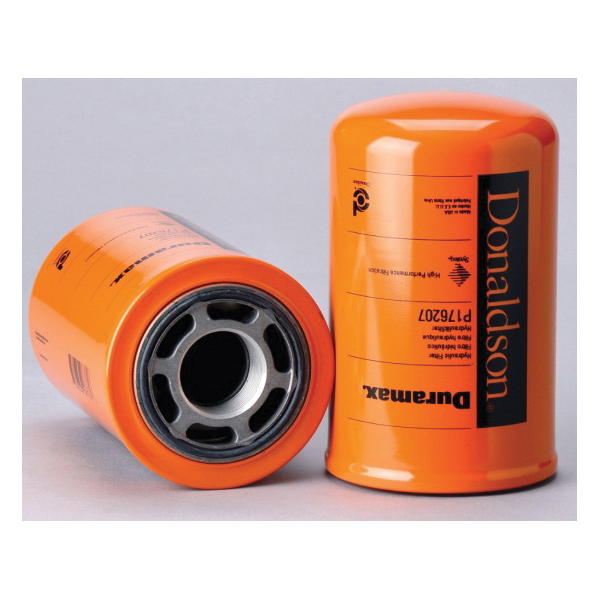

Donaldson P176207 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK05/25 P176207 Spin-On Hydraulic Filter, 1-3/4-12 Port, UN Port Connection, 11 um at Beta 1000

Donaldson® Duramax® HMK05/25 P176207 Spin-On Hydraulic Filter, 1-3/4-12 Port, UN Port Connection, 11 um at Beta 1000 P176207

HMK05 (single) and HMK25 (double) Duramax® spin-on filters are perfect for high flow applications, featuring a heavy-duty steel body and die cast top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both HMK05 and HMK25 models use the same replacement filters, with identical pressure ratings, reducing inventory.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK05/25, 1-3/4-12 Port, UN Port Connection, Synthetic Media, 11 um at Beta 1000, 50% at 4 um Efficiency, 50 gpm, 100 gpm Flow Rate, 350 psi, -20 to 250 deg F Operating, Nitrile Seal, Steel Housing, 4.7 in OD, 7.6 in Overall Height, For Use With: Caterpillar D6H, D6H II, D6H II LGP, D6H LGP 3306 Engine Tractor Tracked, New Holland 555D, 575D, 655D Engine Loader, 555E, 675D, Volvo BL61 D5A and Construction Equipment BL61 D5D Engine Backhoe Loader

Efficiency      :      50% at 4 um
Flow Rate      :      50 gpm, 100 gpm
Housing Material      :      Steel
Media Type      :      Synthetic
Micron Rating      :      11 um at Beta 1000
Operating Temperature      :      -20 to 250 deg F
Outside Diameter      :      4.7 in
Overall Height      :      7.6 in
Port Connection Type      :      UN
Port Size      :      1-3/4-12
Pressure Rating      :      350 psi
Seal Material      :      Nitrile
Series      :      HMK05/25
Suitable For Use With      :      Caterpillar D6H, D6H II, D6H II LGP, D6H LGP 3306 Engine Tractor Tracked, New Holland 555D, 575D, 655D Engine Loader, 555E, 675D, Volvo BL61 D5A and Construction Equipment BL61 D5D Engine Backhoe Loader
  • Strong, durable heavy-duty steel body and die cast top plate construction
  • Special head-to-canister O-ring seal prevents leakage
  • Nitrile seals are standard
  • Both models use the same replacement filters and have identical pressure ratings, so there's no need to inventory two different replacement filters
  • The HMK25 double filter head means twice the flow capability, with two filters to hold more contaminant
