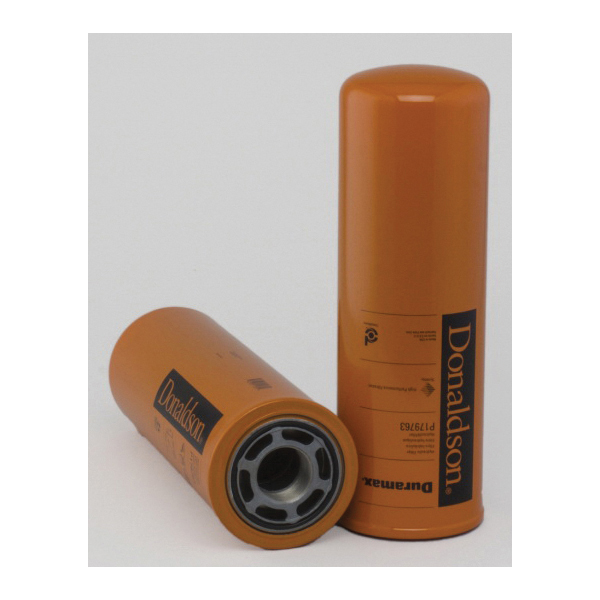

Donaldson P179763 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK05/25 P179763 Spin-On Hydraulic Filter, 1-3/4-12 Port, UN Port Connection, 6 um at Beta 1000

Donaldson® Duramax® HMK05/25 P179763 Spin-On Hydraulic Filter, 1-3/4-12 Port, UN Port Connection, 6 um at Beta 1000 P179763

HMK05 (single) and HMK25 (double) Duramax® spin-on filters are perfect for high flow applications, featuring a heavy-duty steel body and die cast top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both HMK05 and HMK25 models use the same replacement filters, with identical pressure ratings, reducing inventory.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK05/25, 1-3/4-12 Port, UN Port Connection, Synthetic Media, 6 um at Beta 1000, 50 gpm, 100 gpm Flow Rate, 350 psi, -20 to 250 deg F Operating, Nitrile Seal, Steel Housing, 4.7 in OD, 14.24 in Overall Height, For Use With: Caterpillar 450E C4.4TA Acert Engine Backhoe Loader, 793D 3516BTA Engine Dump Truck, 854K C32TA Acert Engine Dozer Wheeled, 992K C32 Acert Engine Loader Wheeled, TK370 and TK380 3126 Engine Feller Buncher

Flow Rate      :      50 gpm, 100 gpm
Housing Material      :      Steel
Media Type      :      Synthetic
Micron Rating      :      6 um at Beta 1000
Operating Temperature      :      -20 to 250 deg F
Outside Diameter      :      4.7 in
Overall Height      :      14.24 in
Port Connection Type      :      UN
Port Size      :      1-3/4-12
Pressure Rating      :      350 psi
Seal Material      :      Nitrile
Series      :      HMK05/25
Suitable For Use With      :      Caterpillar 450E C4.4TA Acert Engine Backhoe Loader, 793D 3516BTA Engine Dump Truck, 854K C32TA Acert Engine Dozer Wheeled, 992K C32 Acert Engine Loader Wheeled, TK370 and TK380 3126 Engine Feller Buncher
  • Strong, durable heavy-duty steel body and die cast top plate construction
  • Special head-to-canister O-ring seal prevents leakage
  • Nitrile seals are standard
  • Both models use the same replacement filters and have identical pressure ratings, so there's no need to inventory two different replacement filters
  • The HMK25 double filter head means twice the flow capability, with two filters to hold more contaminant
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P165569_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P179763_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
