Donaldson® P525956 IDI_147601

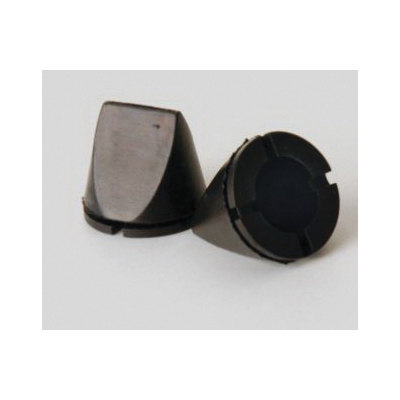

Donaldson P525956 Vacuator Valve (OEM)

Donaldson® P525956 Vacuator Valve, For Use With: EPG 11 in, 13 in and 15 in Air Cleaners

Donaldson® P525956 Vacuator Valve, For Use With: EPG 11 in, 13 in and 15 in Air Cleaners P525956

The vacuator valve, standard on the majority of Donaldson® air cleaners, is an important part of the functionality of the air cleaner. It is an integral part of the pre-cleaning stage on two-stage air cleaners. The dust cup, where pre-cleaned dust is collected, is normally under a slight vacuum when the engine is running. The normal engine pulsing of the vacuum causes the vacuator valve to open and close. This action automatically expels any collected dust and water. The vacuator valve also unloads when the engine is stopped.
Donaldson® Vacuator Valve, Specifications: 60 Durometer, 0.98 in Diameter, For Use With: EPG 11 in, 13 in and 15 in Air Cleaners

Diameter      :      0.98 in
Specifications      :      60 Durometer
Suitable For Use With      :      EPG 11 in, 13 in and 15 in Air Cleaners
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_H000165_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P525956_Specification_Sheet.pdf
