Donaldson® P550230 IDI_148023

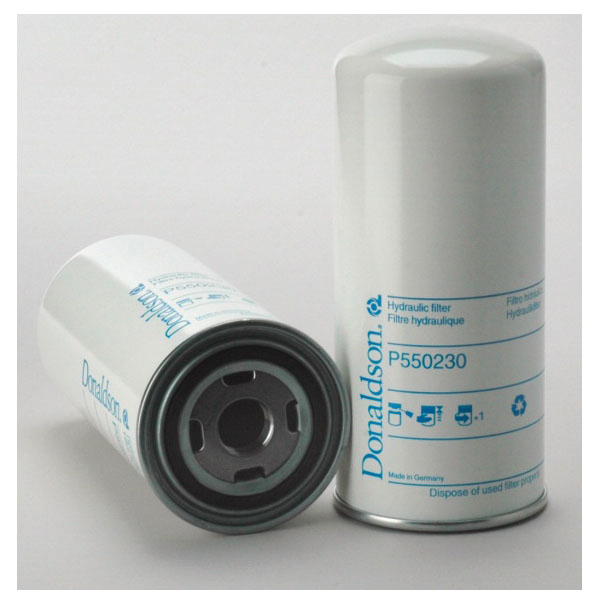

Donaldson P550230 Hydraulic Filter, Spin-On (OEM)

Donaldson® P550230 Spin-On Hydraulic Filter, #1-12 Port, UN Port Connection, 20 um at Beta 2, 50 um at Beta 1000

Donaldson® P550230 Spin-On Hydraulic Filter, #1-12 Port, UN Port Connection, 20 um at Beta 2, 50 um at Beta 1000 P550230

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Spin-On Hydraulic Filter, #1-12 Port, UN Port Connection, Cellulose Media, 20 um at Beta 2, 50 um at Beta 1000, 50% at 15 um Efficiency, 32 psi LR, 38 psi HR Bypass Pressure, 3.82 in OD, 8.39 in Overall Height, For Use With: Atlas Copco XAS36 Yanmar 3TNE68, XAS37 Kubota D905 Engine Compressor, Atlas Weyhausen 1304, 1304LC Deutz BF4L913 Engine Construction Equipment, Atlas Weyhausen AR51, AR51A Deutz F2L511 Engine Loader, Bomag BW141, BW141AC Engine Compactor, Compair C57-14 and C58-12 Deutz BF4M1011F Engine Compressor

Bypass Pressure      :      32 psi LR, 38 psi HR
Efficiency      :      50% at 15 um
Media Type      :      Cellulose
Micron Rating      :      20 um at Beta 2, 50 um at Beta 1000
Outside Diameter      :      3.82 in
Overall Height      :      8.39 in
Port Connection Type      :      UN
Port Size      :      #1-12
Suitable For Use With      :      Atlas Copco XAS36 Yanmar 3TNE68, XAS37 Kubota D905 Engine Compressor, Atlas Weyhausen 1304, 1304LC Deutz BF4L913 Engine Construction Equipment, Atlas Weyhausen AR51, AR51A Deutz F2L511 Engine Loader, Bomag BW141, BW141AC Engine Compactor, Compair C57-14 and C58-12 Deutz BF4M1011F Engine Compressor
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P550230_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
