Donaldson® P550590 IDI_148184

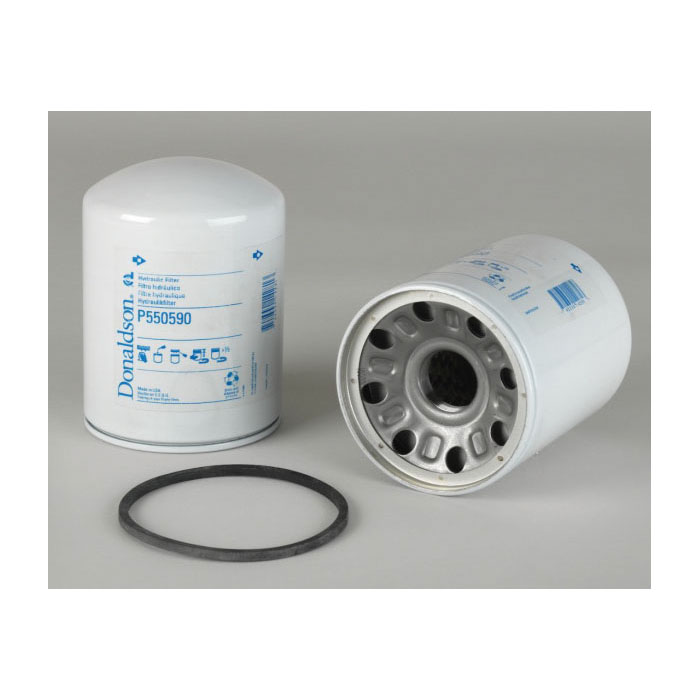

Donaldson P550590 Hydraulic Filter, Spin-On (OEM)

Donaldson® P550590 Spin-On Hydraulic Filter, 1-1/2-16 Port, UN Port Connection, 24 um at Beta 2

Donaldson® P550590 Spin-On Hydraulic Filter, 1-1/2-16 Port, UN Port Connection, 24 um at Beta 2 P550590

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Spin-On Hydraulic Filter, 1-1/2-16 Port, UN Port Connection, Cellulose Media, 24 um at Beta 2, 50% at 25 um Efficiency, 9 psi Bypass Pressure, 5 in OD, 6.87 in Overall Height, For Use With: Ford 8210, 9700, New Holland 8630 Ford BSD666 and TW15 Ford BSD666T Engine Tractors

Bypass Pressure      :      9 psi
Efficiency      :      50% at 25 um
Media Type      :      Cellulose
Micron Rating      :      24 um at Beta 2
Outside Diameter      :      5 in
Overall Height      :      6.87 in
Port Connection Type      :      UN
Port Size      :      1-1/2-16
Suitable For Use With      :      Ford 8210, 9700, New Holland 8630 Ford BSD666 and TW15 Ford BSD666T Engine Tractors
