Donaldson® P551235 IDI_148448

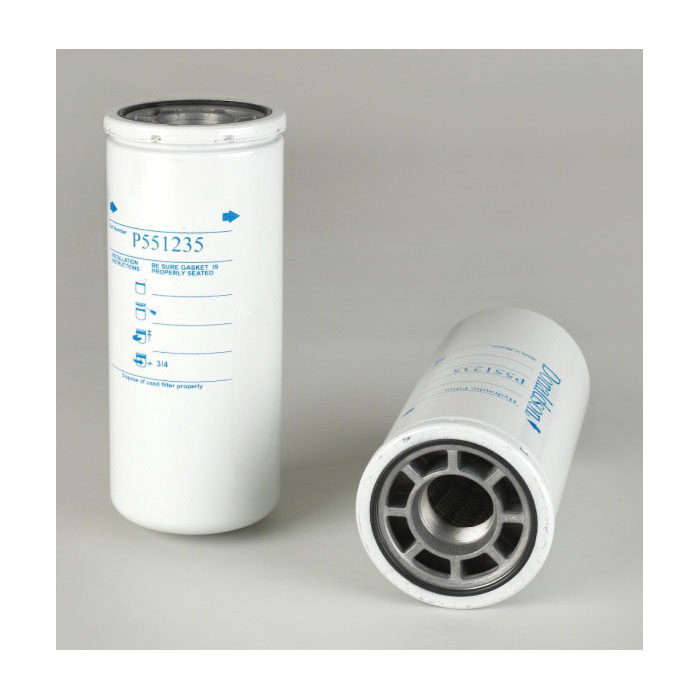

Donaldson P551235 Hydraulic Filter, Spin-On (OEM)

Donaldson® P551235 Spin-On Hydraulic Filter, 1-1/2-16 Port, UN Port Connection, 5 um at Beta 2, 24 um at Beta 1000

Donaldson® P551235 Spin-On Hydraulic Filter, 1-1/2-16 Port, UN Port Connection, 5 um at Beta 2, 24 um at Beta 1000 P551235

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Spin-On Hydraulic Filter, 1-1/2-16 Port, UN Port Connection, Cellulose Media, 5 um at Beta 2, 24 um at Beta 1000, 50% at 4 um Efficiency, 3.86 in OD, 9-1/2 in Overall Height, For Use With: Hitachi LX100-3 John Deere 6068T, LX120-3 John Deere 6068 Engine Loader Wheeled, John Deere 360DC, 360DG 6068T Engine Skid Steer Loader, 444H, 444H LL 4045 Engine Loader, 460DC, 540G II Engine Skidder, 544H 6068HT and 6068 Engine Loader Wheeled

Efficiency      :      50% at 4 um
Media Type      :      Cellulose
Micron Rating      :      5 um at Beta 2, 24 um at Beta 1000
Outside Diameter      :      3.86 in
Overall Height      :      9-1/2 in
Port Connection Type      :      UN
Port Size      :      1-1/2-16
Suitable For Use With      :      Hitachi LX100-3 John Deere 6068T, LX120-3 John Deere 6068 Engine Loader Wheeled, John Deere 360DC, 360DG 6068T Engine Skid Steer Loader, 444H, 444H LL 4045 Engine Loader, 460DC, 540G II Engine Skidder, 544H 6068HT and 6068 Engine Loader Wheeled
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P551235_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
