Donaldson® P556005 IDI_148784

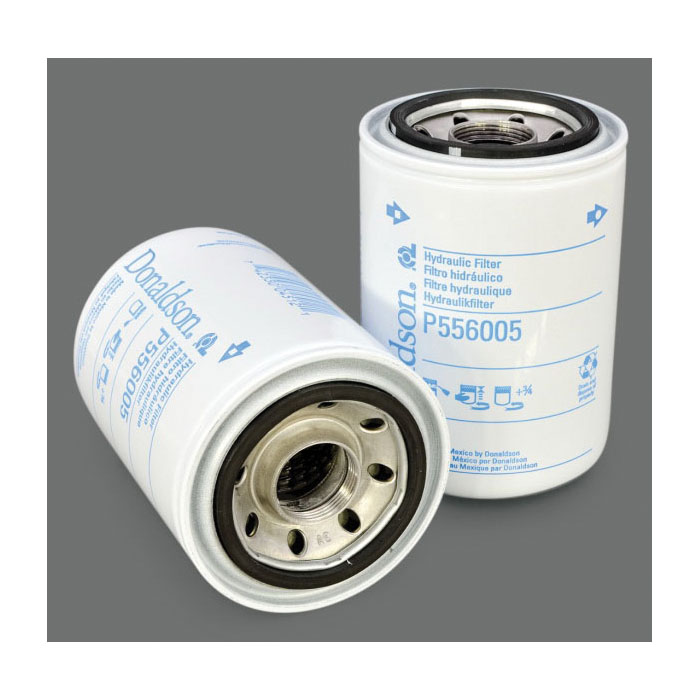

Donaldson P556005 Hydraulic Filter, Spin-On (OEM)

Donaldson® P556005 Spin-On Hydraulic Filter, 1-1/8-16 Port, UN Port Connection, 7 um at Beta 2, 23 um at Beta 1000

Donaldson® P556005 Spin-On Hydraulic Filter, 1-1/8-16 Port, UN Port Connection, 7 um at Beta 2, 23 um at Beta 1000 P556005

Anything but standard hydraulic performance. We offer a complete line of hydraulic filters and cartridges for low, medium and high pressure applications. Each is also available in a range of media efficiencies to meet specific application requirements.
Donaldson® Spin-On Hydraulic Filter, 1-1/8-16 Port, UN Port Connection, Cellulose Media, 7 um at Beta 2, 23 um at Beta 1000, 50% at 10 um Efficiency, 3.66 in OD, 5.35 in Overall Height, For Use With: Agco ST28A, ST30 Engine Tractor, John Deere 6600 6329, 6602 362, 404 Engine Combine, Bobcat 220 Kubota D750B, 225 Kubota D1402B Engine Excavator, Case/Case IH 40+4, 70+4 207 Engine Trencher, Caterpillar 787B 3516B and 789 3516TA Engine Dump Trucks

Efficiency      :      50% at 10 um
Media Type      :      Cellulose
Micron Rating      :      7 um at Beta 2, 23 um at Beta 1000
Outside Diameter      :      3.66 in
Overall Height      :      5.35 in
Port Connection Type      :      UN
Port Size      :      1-1/8-16
Suitable For Use With      :      Agco ST28A, ST30 Engine Tractor, John Deere 6600 6329, 6602 362, 404 Engine Combine, Bobcat 220 Kubota D750B, 225 Kubota D1402B Engine Excavator, Case/Case IH 40+4, 70+4 207 Engine Trencher, Caterpillar 787B 3516B and 789 3516TA Engine Dump Trucks
