Donaldson® P560584 IDI_148983

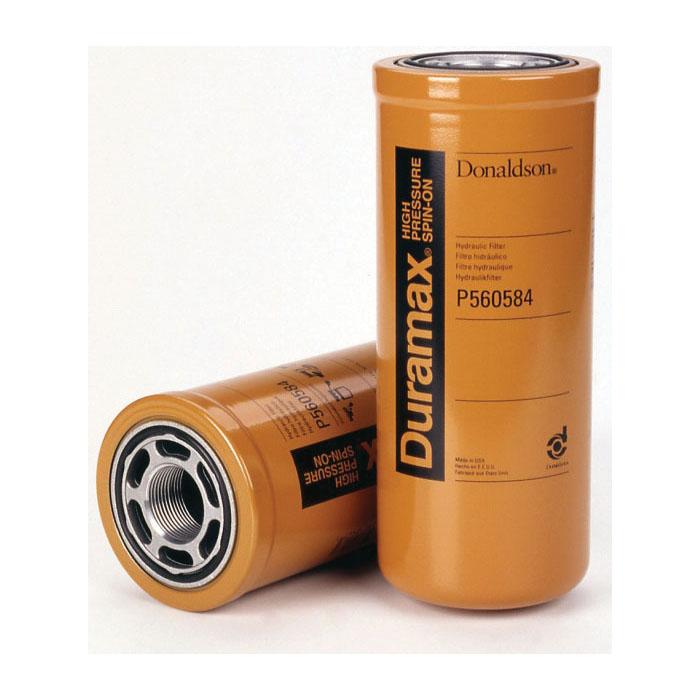

Donaldson P560584 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK04/24 P560584 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 10 um at Beta 2

Donaldson® Duramax® HMK04/24 P560584 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 10 um at Beta 2 P560584

HMK04 (single) and HMK24 (double) Duramax® spin-on filters feature a durable die cast aluminum head, heavy-duty steel body, with die cast aluminum top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both models use the same replacement filters and have identical pressure ratings, reducing inventory. Both filters have identical pressures, but the HMK24 handles greater flow capacity than the HMK04.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK04/24, 1-3/8-12 Port, UN Port Connection, Cellulose, Water Absorbent Media, 10 um at Beta 2, 35 gpm, 60 gpm Flow Rate, 500 psi, -20 to 225 deg F Operating, Die Cast Aluminum Head, Nitrile Seal, Steel Housing, 3.82 in OD, 9.44 in Overall Height

Flow Rate      :      35 gpm, 60 gpm
Head Material      :      Die Cast Aluminum
Housing Material      :      Steel
Media Type      :      Cellulose, Water Absorbent
Micron Rating      :      10 um at Beta 2
Operating Temperature      :      -20 to 225 deg F
Outside Diameter      :      3.82 in
Overall Height      :      9.44 in
Port Connection Type      :      UN
Port Size      :      1-3/8-12
Pressure Rating      :      500 psi
Seal Material      :      Nitrile
Series      :      HMK04/24
  • Strong, durable die cast aluminum head and heavy-duty steel body, with die cast aluminum top plate construction
  • Special head-to-canister O-ring seal prevents leakage
  • Nitrile seals are standard
  • Both models use the same replacement filters and feature identical pressure ratings, but the HMK24 handles greater flow capacity
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P163542_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P560584_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
