Donaldson® P561880 IDI_149085

Donaldson P561880 Head Assembly (OEM)

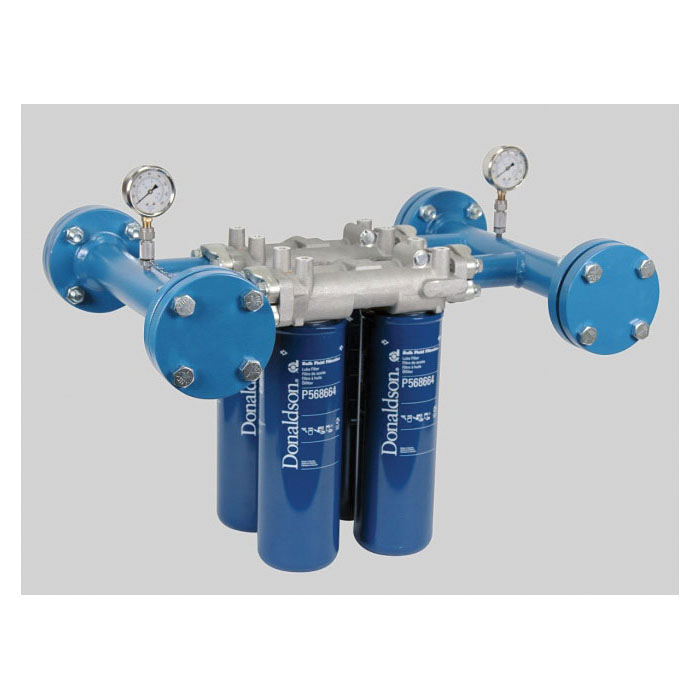

Donaldson® Bulk Filtration™ P561880 Bulk Fluid Manifold, 2 in Connection, ANSI Flange Connection, 250 gpm

Donaldson® Bulk Filtration™ P561880 Bulk Fluid Manifold, 2 in Connection, ANSI Flange Connection, 250 gpm P561880

Clean solutions filter manifolds expand capacity and increase flow rate beyond the capability of a single or dual filter head. The P561880 four filter manifold is constructed of heavy-duty carbon steel and handles flow rates of up to 250 gpm/946 Lpm. Dividing the flow between multiple filters plumbed in parallel slows the flow rate per filter, reducing pressure drop and extending filter life. A variety of filter medias are available to meet the specific application requirements.
Donaldson® Bulk Filtration™ Bulk Fluid Manifold, 2 in Connection, ANSI Flange Connection, 250 gpm Flow Rate, 290 psi, -40 to 245 deg F Operating, Carbon Steel, Painted, Horizontal, Vertical Mounting, 19.17 in L x 24.25 in W, Specifications: 5.98 in Dia Flange, For Use With: DBB8664, DBB8665, DBB8666, DBB8777, DBB0248 Series Filter

Connection Size      :      2 in
Connection Type      :      ANSI Flange
Dimensions      :      19.17 in L x 24.25 in W
Finish      :      Painted
Flow Rate      :      250 gpm
Material      :      Carbon Steel
Mounting Type      :      Horizontal, Vertical
Operating Temperature      :      -40 to 245 deg F
Pressure Rating      :      290 psi
Specifications      :      5.98 in Dia Flange
Suitable For Use With      :      DBB8664, DBB8665, DBB8666, DBB8777, DBB0248 Series Filter
  • Fast, easy and safe to service
  • Requires no electrical or air hook-up
  • Large capacity in small foot print
  • Cost effective high capacity system
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P561880_Specification_Sheet.pdf
