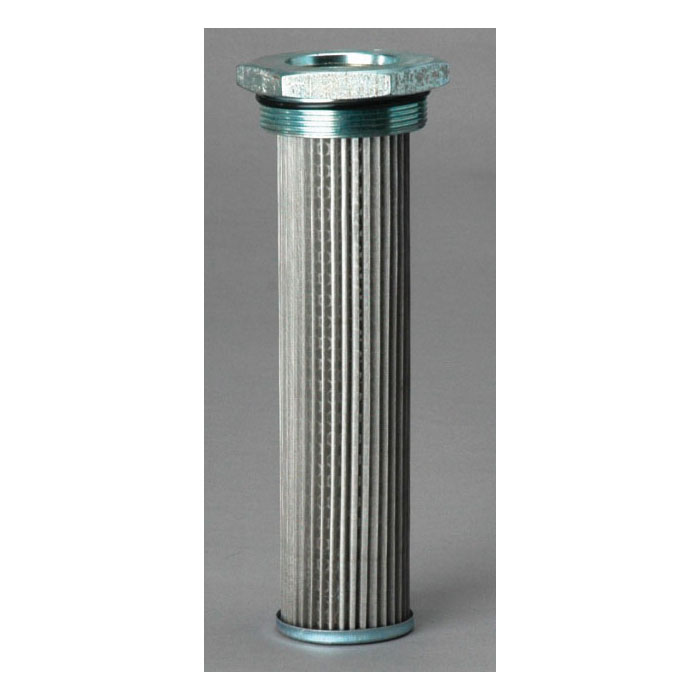

Donaldson® STM Series P562252 Hydraulic Filter Strainer, 1-5/8-12 Port, UN Port Connection, 149 um at Beta 2, 25 gpm
Donaldson® STM Series P562252 Hydraulic Filter Strainer, 1-5/8-12 Port, UN Port Connection, 149 um at Beta 2, 25 gpm P562252We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Hydraulic Filter Strainer, Series: STM Series, 1-5/8-12 Port, UN Port Connection, Wire Mesh Media, 149 um at Beta 2, 50% at 149 um Efficiency, 25 gpm Flow Rate, 6 psi Bypass Pressure, 250 deg F Operating, Stainless Steel Housing, Zinc-Plated Housing, Tank Mounting, 2.12 in OD, 9.04 in Overall Height, For Use With: Reservoir
| Bypass Pressure | : | 6 psi |
| Efficiency | : | 50% at 149 um |
| Flow Rate | : | 25 gpm |
| Housing Finish | : | Zinc-Plated |
| Housing Material | : | Stainless Steel |
| Media Type | : | Wire Mesh |
| Micron Rating | : | 149 um at Beta 2 |
| Mounting Type | : | Tank |
| Operating Temperature | : | 250 deg F |
| Outside Diameter | : | 2.12 in |
| Overall Height | : | 9.04 in |
| Port Connection Type | : | UN |
| Port Size | : | 1-5/8-12 |
| Series | : | STM Series |
| Suitable For Use With | : | Reservoir |
