Donaldson® P562271 IDI_149148

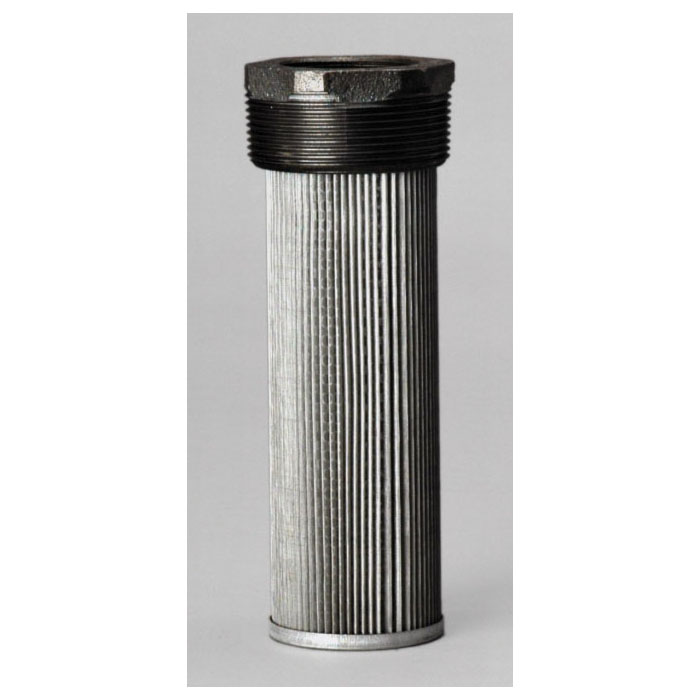

Donaldson P562271 Hydraulic Filter, Strainer (OEM)

Donaldson® STM Series P562271 Hydraulic Filter Strainer, 2 in Port, NPT Port Connection, 149 um at Beta 2, 50 gpm

Donaldson® STM Series P562271 Hydraulic Filter Strainer, 2 in Port, NPT Port Connection, 149 um at Beta 2, 50 gpm P562271

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Hydraulic Filter Strainer, Series: STM Series, 2 in Port, NPT Port Connection, Wire Mesh Media, 149 um at Beta 2, 50% at 149 um Efficiency, 50 gpm Flow Rate, 250 deg F Operating, Stainless Steel Housing, Zinc-Plated Housing, Tank Mounting, 3 in OD, 9.7 in Overall Height, For Use With: Reservoir

Efficiency      :      50% at 149 um
Flow Rate      :      50 gpm
Housing Finish      :      Zinc-Plated
Housing Material      :      Stainless Steel
Media Type      :      Wire Mesh
Micron Rating      :      149 um at Beta 2
Mounting Type      :      Tank
Operating Temperature      :      250 deg F
Outside Diameter      :      3 in
Overall Height      :      9.7 in
Port Connection Type      :      NPT
Port Size      :      2 in
Series      :      STM Series
Suitable For Use With      :      Reservoir
  • Tank mounted strainers offer easy installation
  • Access to reservoir interior is not needed
  • You can mount these units through a sidewall or through the tank top and into a standpipe
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P169012_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P562271_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
