Donaldson® P562404 IDI_149237

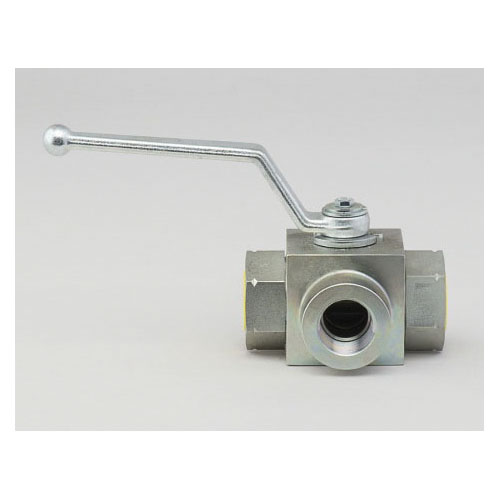

Donaldson P562404 Ball Valve (OEM)

Donaldson® P562404 Selector Ball Valve, 1 in Nominal, 3-Ways-Port/Way, 4500 psi Pressure, Steel Body

Donaldson® P562404 Selector Ball Valve, 1 in Nominal, 3-Ways-Port/Way, 4500 psi Pressure, Steel Body P562404

Donaldson® Selector Ball Valve, Model: 3W-HBV-16-N, NPT End, 1 in Nominal, 4500 psi, 4.69 in Inlet to Outlet Length, 3-Ways, Steel Body, -22 to 212 deg F, 3.27 in H

Body Material      :      Steel
Dimensions      :      3.27 in H
End Type      :      NPT
Inlet to Outlet Length      :      4.69 in
Model      :      3W-HBV-16-N
Nominal Size      :      1 in
Number of Ports/Ways      :      3-Ways
Pressure Rating      :      4500 psi
Temperature Rating      :      -22 to 212 deg F
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P562404_Specification_Sheet.pdf
