Donaldson® P562405 IDI_149238

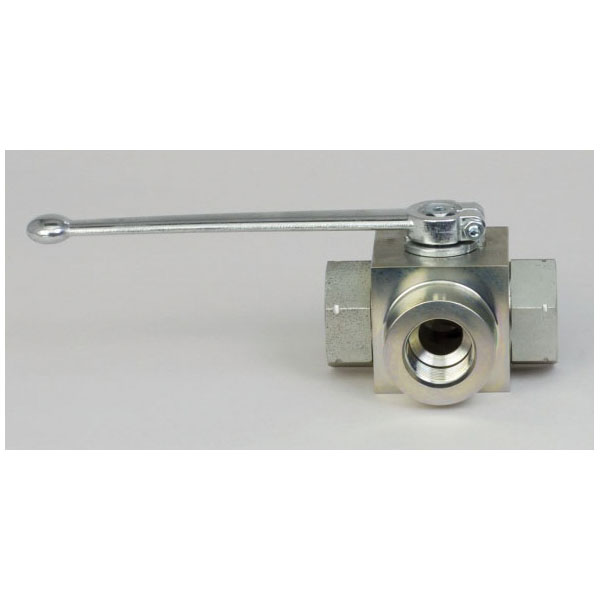

Donaldson P562405 Ball Valve (OEM)

Donaldson® P562405 Selector Ball Valve, #16 Nominal, 3-Ways-Port/Way, 4500 psi Pressure, Steel Body

Donaldson® P562405 Selector Ball Valve, #16 Nominal, 3-Ways-Port/Way, 4500 psi Pressure, Steel Body P562405

Donaldson® Selector Ball Valve, Model: 3W-HBV-16-S, SAE End, #16 Nominal, 4500 psi, 4.72 in Inlet to Outlet Length, 3-Ways, Steel Body, -22 to 212 deg F, 4.17 in H

Body Material      :      Steel
Dimensions      :      4.17 in H
End Type      :      SAE
Inlet to Outlet Length      :      4.72 in
Model      :      3W-HBV-16-S
Nominal Size      :      #16
Number of Ports/Ways      :      3-Ways
Pressure Rating      :      4500 psi
Temperature Rating      :      -22 to 212 deg F
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P562405_Specification_Sheet.pdf
